(88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS

Запчасти Case CX160D LC (88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES

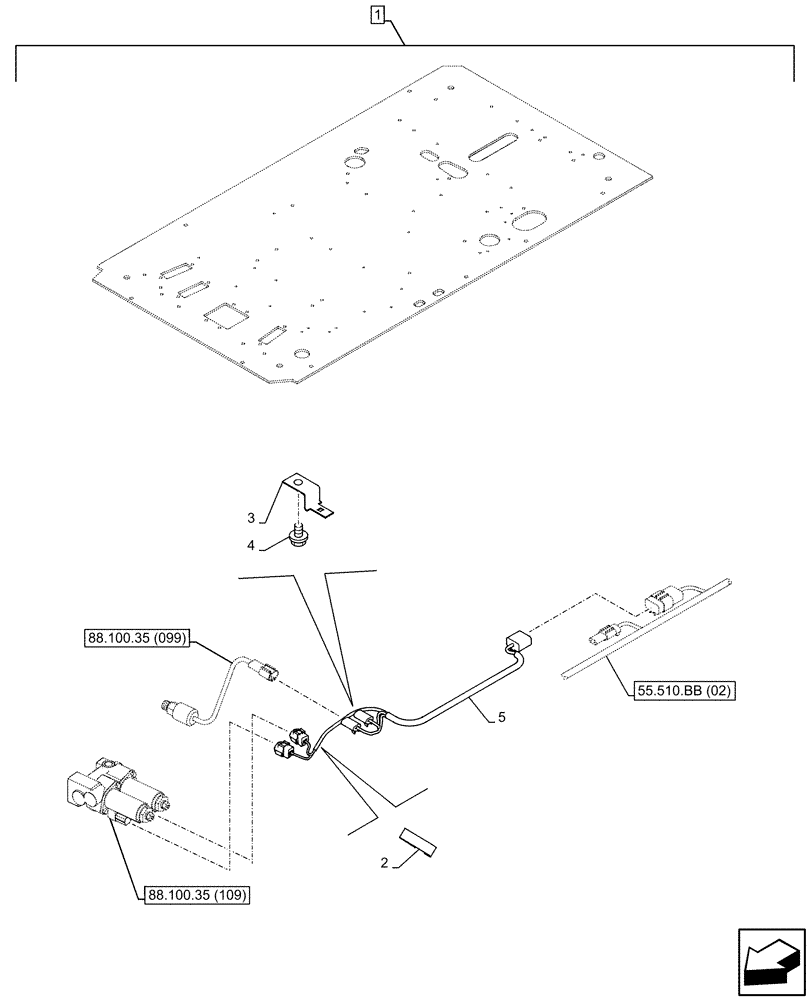

Схема запчастей Case CX160D LC - (88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES
88.100.35 (109)
4
1
3
55.510.bb (02)
2
5
88.100.35 (099)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP428-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

250mm

10шт.

3

165405A1

CLIP

2шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

5

KHR39520

WIRE HARNESS

1шт.

Выбрано товаров: 6
