(88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR

Запчасти Case CX160D LC (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES

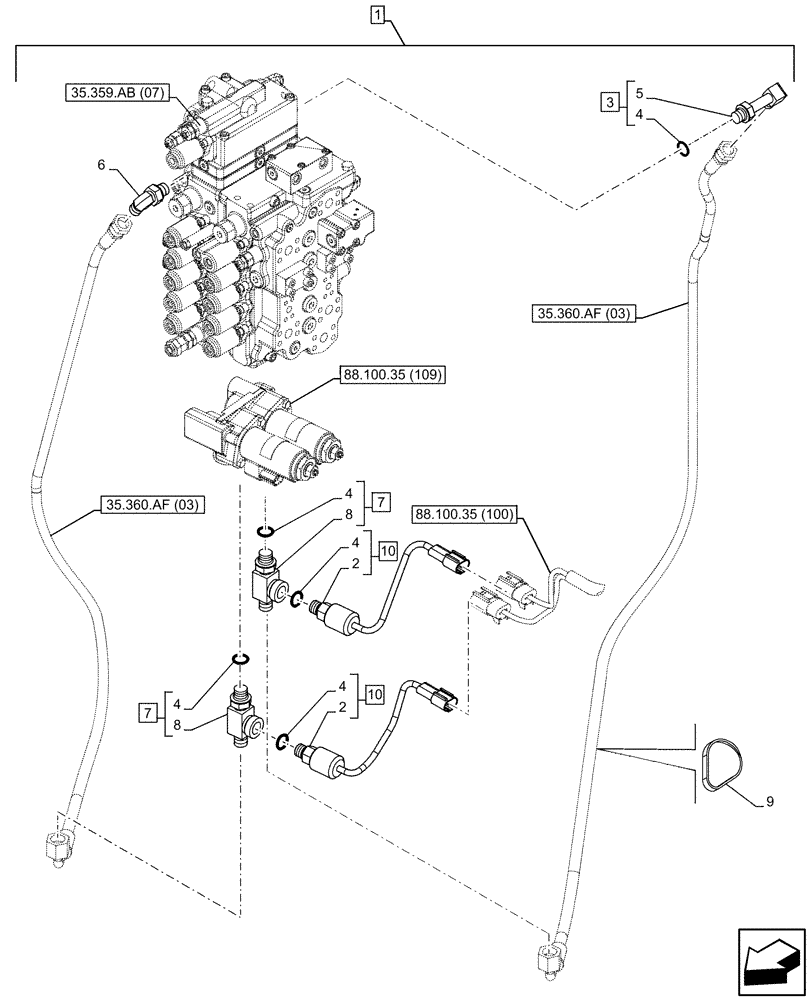

Схема запчастей Case CX160D LC - (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES
6
3
8
4
7
35.359.ab (07)
5
8
4
88.100.35 (109)
10
4
35.360.af (03)
35.360.af (03)
7
10
2
2
1
88.100.35 (100)
4
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP428-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Sensor, Incl in 10

2шт.

3

KHJ1178

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 4 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

150496A1

MOUNTING CLIP

250mm

5шт.

10

KHR21490

PRESSURE SWITCH

ASSY, 0.49 MPa, Incl 2, 4 (Qty 2)

2шт.
