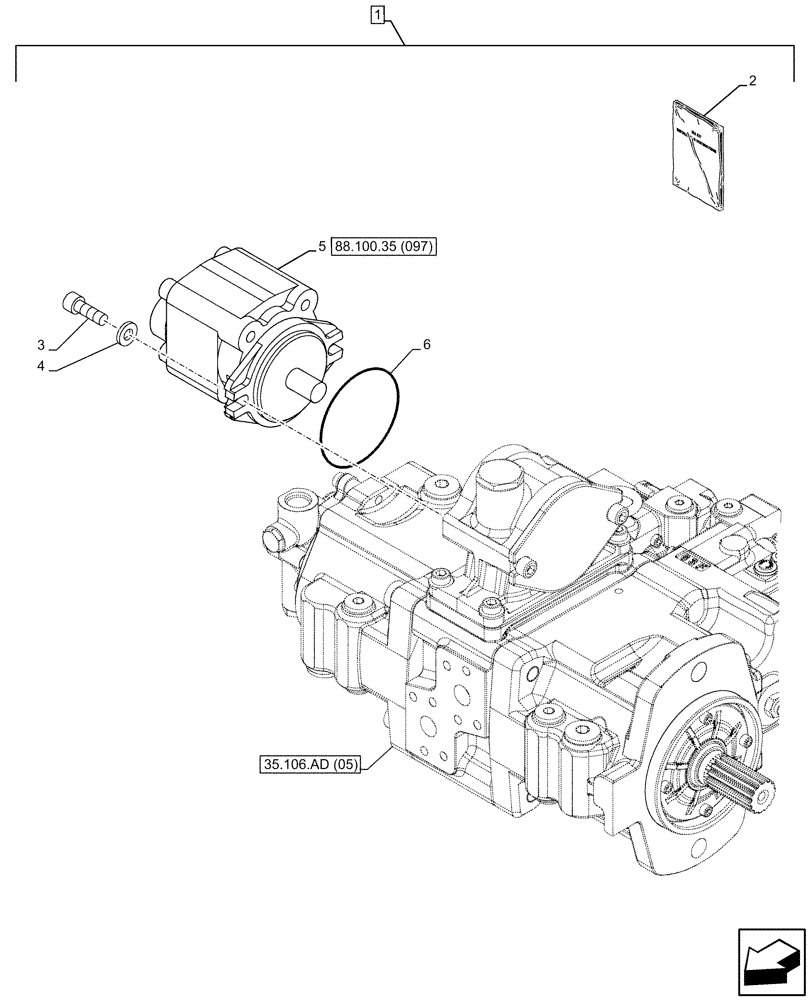

Запчасти Case CX160D LC (88.100.35[096]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES

1

KG0LP428-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900076

INSTRUCTION

1шт.

2

47900372

INSTRUCTION

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

4

150409A1

WASHER

2шт.

5

KNJ19600

PUMP

ASSY

1шт.

6

154697A1

O-RING

1шт.
