/ / / / / / / / (10.216.BA[01]) - FUEL LINE

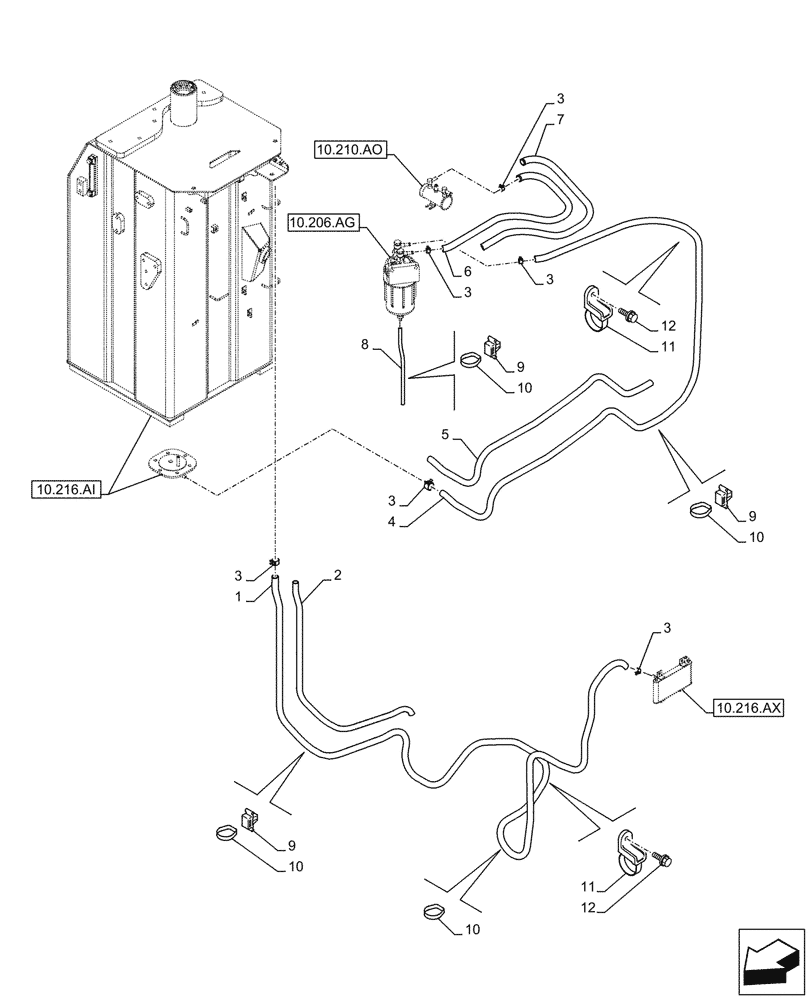

Запчасти Case CX160D LC (10.216.BA[01]) - FUEL LINE (10) - ENGINE
![Схема запчастей Case CX160D LC - (10.216.BA[01]) - FUEL LINE (10) - ENGINE](https://partsell.ru/storage/images/casece/5368963.png)
4
1
9
5
12
8
10
9
11
10
10.206.ag
10.216.ax
3
11
12
10
3
3
3
10.210.ao
10.216.ai
7
3
2
9
3
10
6
1
KHH17260
HOSE
4200mm
1шт.
2
KHR4300
PROTECTIVE SLEEVE
19mm ID x 4100mm
1шт.
3
KHH0405
MOUNTING CLIP
6шт.
4
KHH17230
HOSE
3000mm
1шт.
5
KHR3247
PLASTIC-RUBBER TUBE
19mm ID x 2900mm
1шт.
6
KHH13150
HOSE
900mm
1шт.
7
158061A1
PLASTIC-RUBBER TUBE
19mm ID x 800mm
1шт.
8
KHH16760
TUBE
400mm
1шт.
9
KHR10220
MOUNTING CLIP
1шт.
10
150496A1
MOUNTING CLIP
250mm
1шт.
11
KHR2581
CLAMP
3шт.
12
KHJ1215
BOLT,Spcl
M8 x 25mm
3шт.
