Запчасти Case CX160D LC (88.100.35[085]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

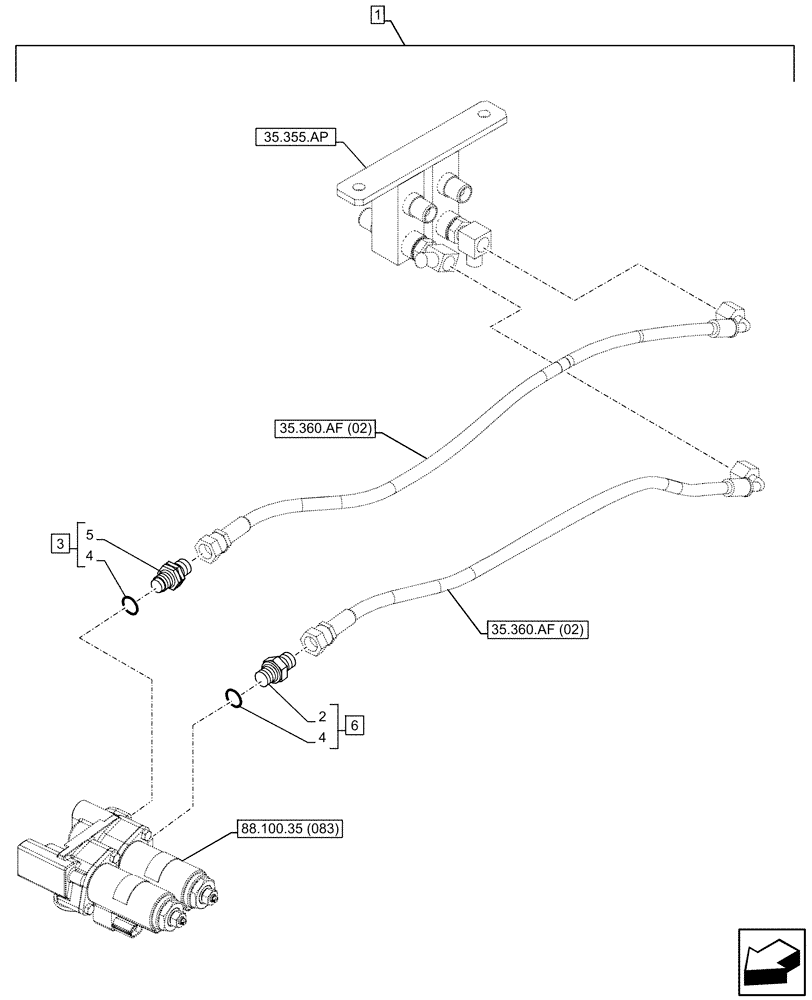

Схема запчастей Case CX160D LC - (88.100.35[085]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
5
35.360.af (02)
4
1
4
35.360.af (02)
3
2
6
88.100.35 (083)
35.355.ap

Артикул

Название

Примечание

Количество

1

KG0LP427-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

3

161841A1

HYD CONNECTOR

ASSY, G1/4" X G1/4", Incl 4 (Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" X G1/4", Incl 2, 4 (Qty 1)

1шт.

Выбрано товаров: 7
