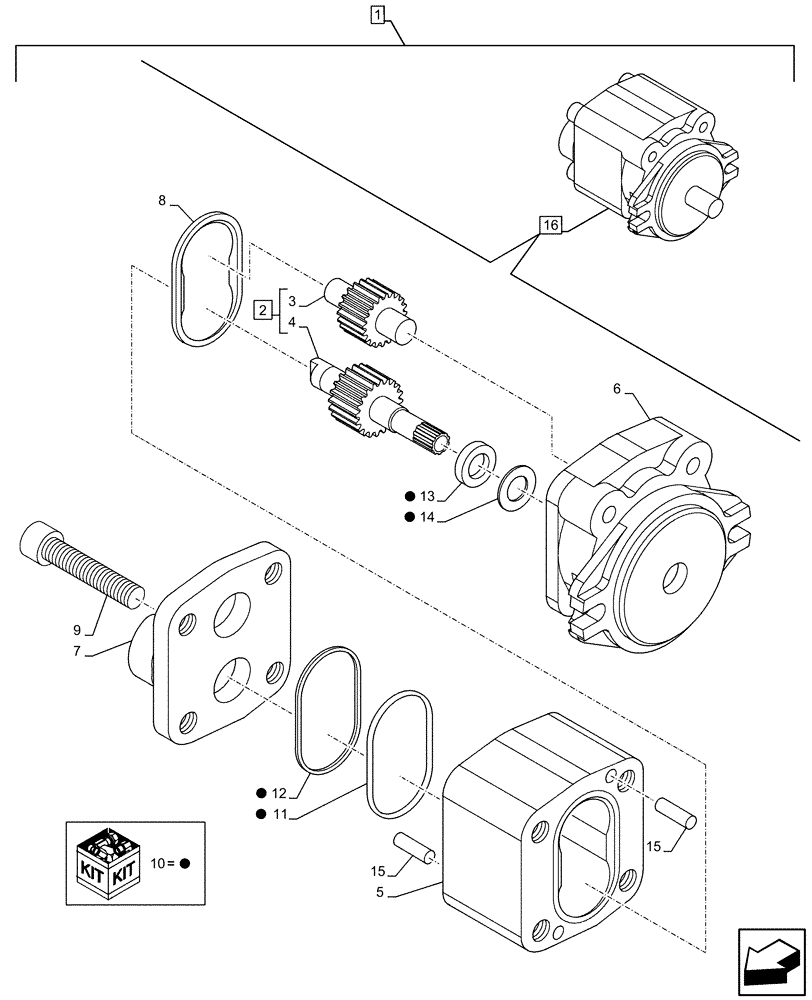

Запчасти Case CX160D LC (88.100.35[081]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR, COMPONENTS (88) - ACCESSORIES

1

KG0LP427-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

LC002960

GEAR SET

ASSY, Incl 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 16

1шт.

6

LW006900

COVER

Flange

1шт.

7

LW006890

COVER

1шт.

8

LR015150

PLATE

2шт.

9

LA015030

BOLT

4шт.

10

LZ008000

REPAIR KIT

Kit, Incl 11 - 14

1шт.

11

LAP0032

SEAL

2шт.

12

LBP0073

BACK-UP RING

2шт.

13

LAP0033

OIL SEAL

1шт.

14

LMP0257

RING

1шт.

15

LA011060

SPECIAL PIN

4шт.

16

KNJ19600

PUMP

ASSY, Incl 2 - 15

1шт.
