Запчасти Case CX160D LC (88.100.35[080]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES

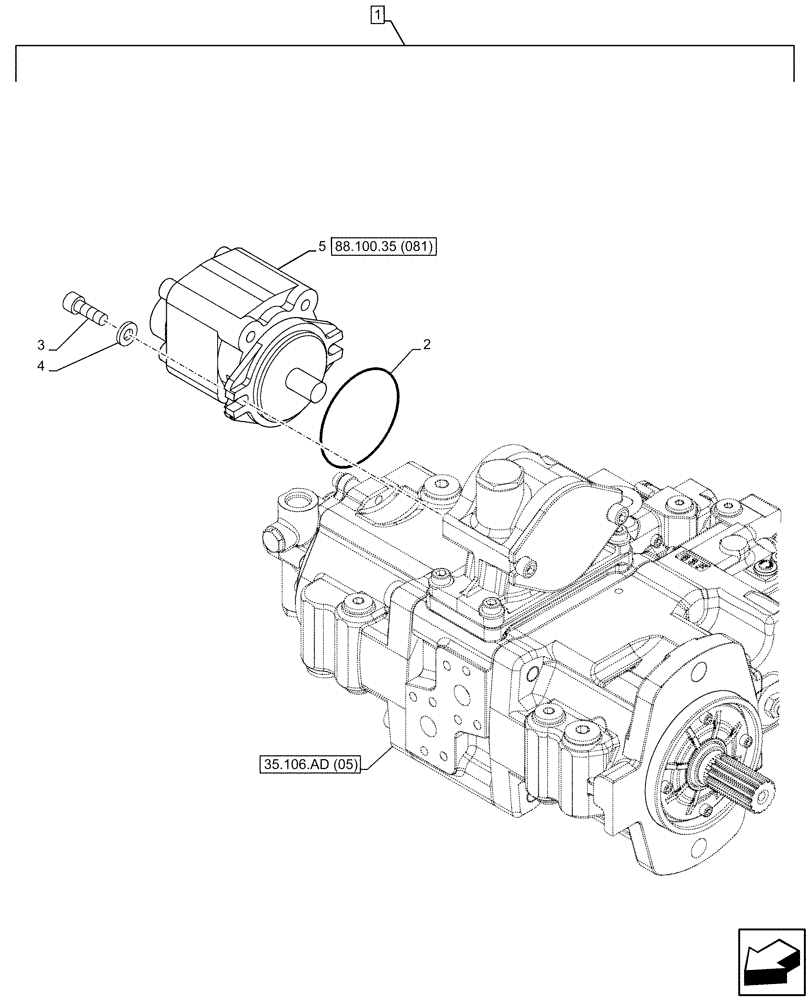

Схема запчастей Case CX160D LC - (88.100.35[080]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES
35.106.ad (05)
2
3
1
4
5
88.100.35 (081)

Артикул

Название

Примечание

Количество

1

KG0LP427-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154697A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

4

150409A1

WASHER

2шт.

5

KNJ19600

PUMP

ASSY

1шт.
