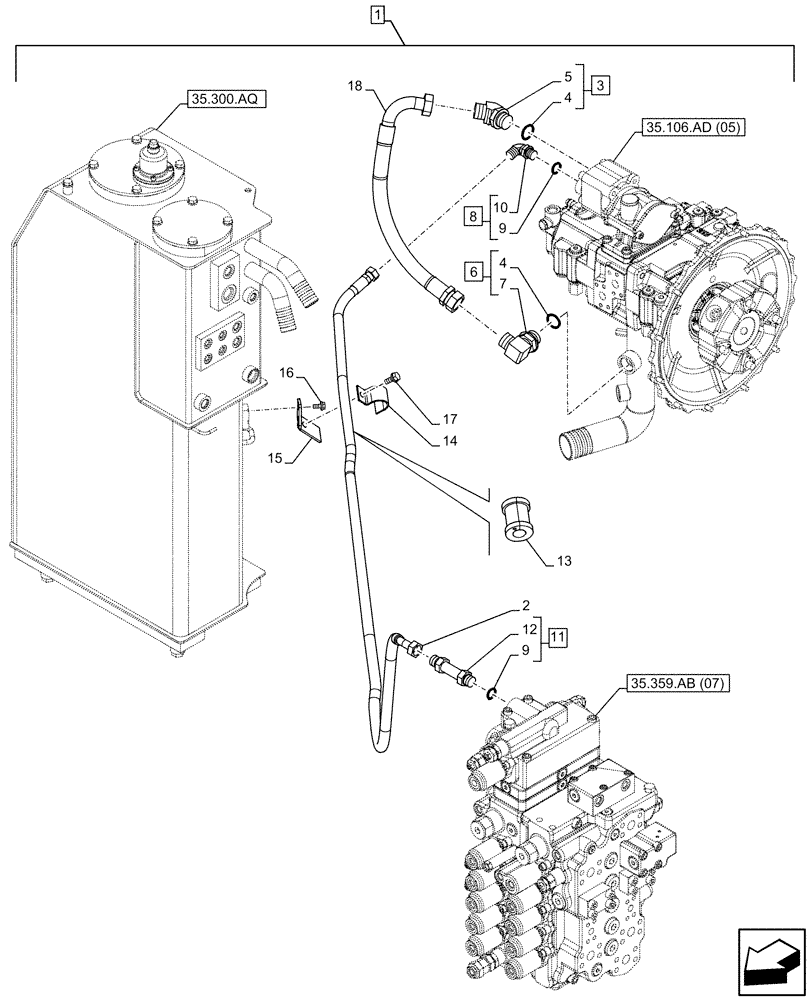

Запчасти Case CX160D LC (88.100.35[079]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, VARIABLE DELIVERY HYDRAULIC PUMP, LINE (88) - ACCESSORIES

1

KG0LP427-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ13150

HOSE ASSY.

12mm ID x 1250mm

1шт.

3

157587A1

ELBOW

ASSY, G1" x G1", Incl 4 (Qty 1), 5

1шт.

4

152211A1

O-RING

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, G1" x G1", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

8

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 9 (Qty 1), 10

1шт.

9

150539A1

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

11

KAJ2432

ADAPTER

ASSY, G1/2" x G1/2", Incl 9 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

KHJ2021

HOSE CLAMP

1шт.

14

KHJ2025

CLAMP

1шт.

15

KNJ20610

BRACKET

1шт.

16

166350A1

BOLT

M8 X 20mm

2шт.

17

166052A1

BOLT

M10 X 25mm

1шт.

18

KSJ11780

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

25.40mm ID x 530mm

1шт.
