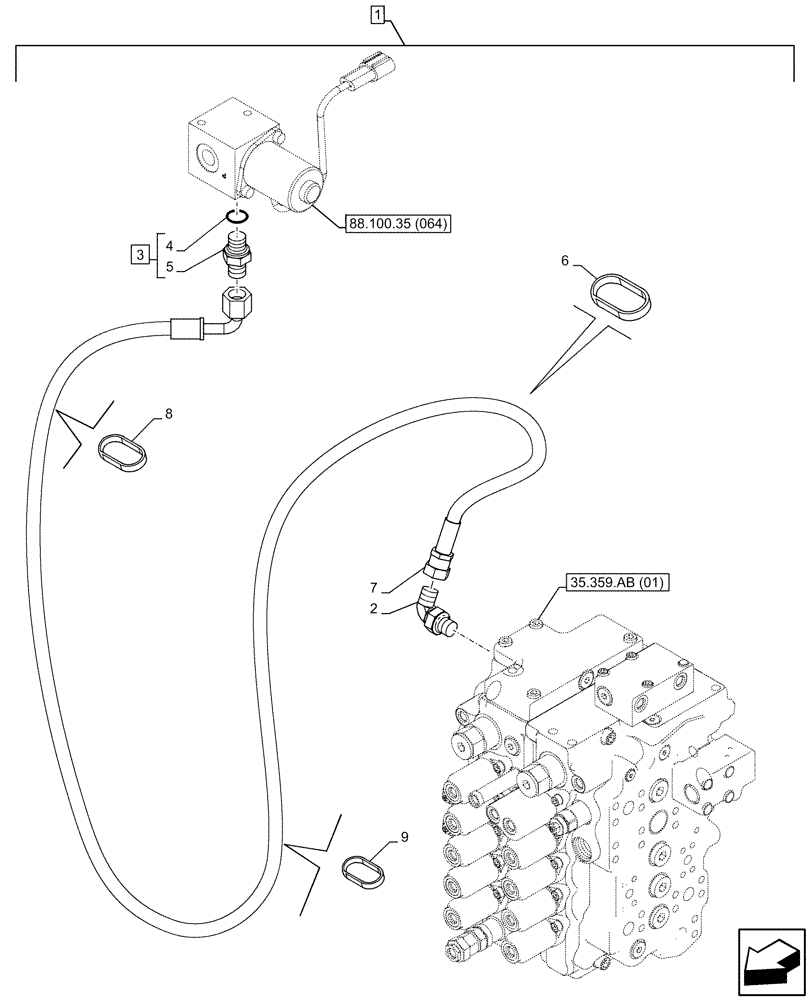

Запчасти Case CX160D LC (88.100.35[076]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4, 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

150496A1

MOUNTING CLIP

L=250mm

9шт.

7

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

Solenoid Valve to Control Valve A Port

1шт.

8

150071A1

MOUNTING CLIP

L=374mm

6шт.

9

150498A1

MOUNTING CLIP

L=297mm

5шт.
