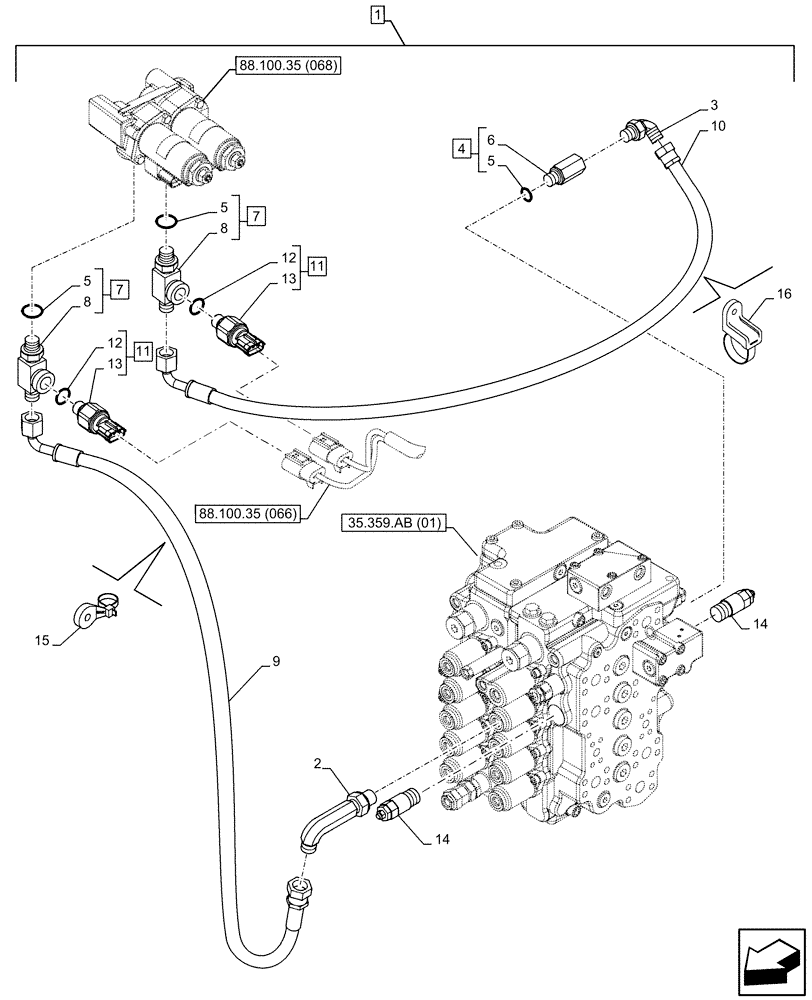

Запчасти Case CX160D LC (88.100.35[075]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28810

ELBOW

G1/4" x G1/4"

1шт.

3

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

4

162525A1

STUD

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

167666A1

FITTING

ASSY, Incl 5 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ2248

HOSE

6.3mm ID x 2950mm

1шт.

10

KHJ2198

HOSE,6.3mm ID x 2850mm L

1шт.

11

KHR26940

SENSOR

Pressure Sensor, 5MPa, Incl 12, 13

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

2шт.

14

KNJ2732

VALVE, PRESSURE RELI

2шт.

15

KHR2584

CLAMP

1шт.

16

KHR2581

CLAMP

1шт.
