(88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG

Запчасти Case CX160D LC (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

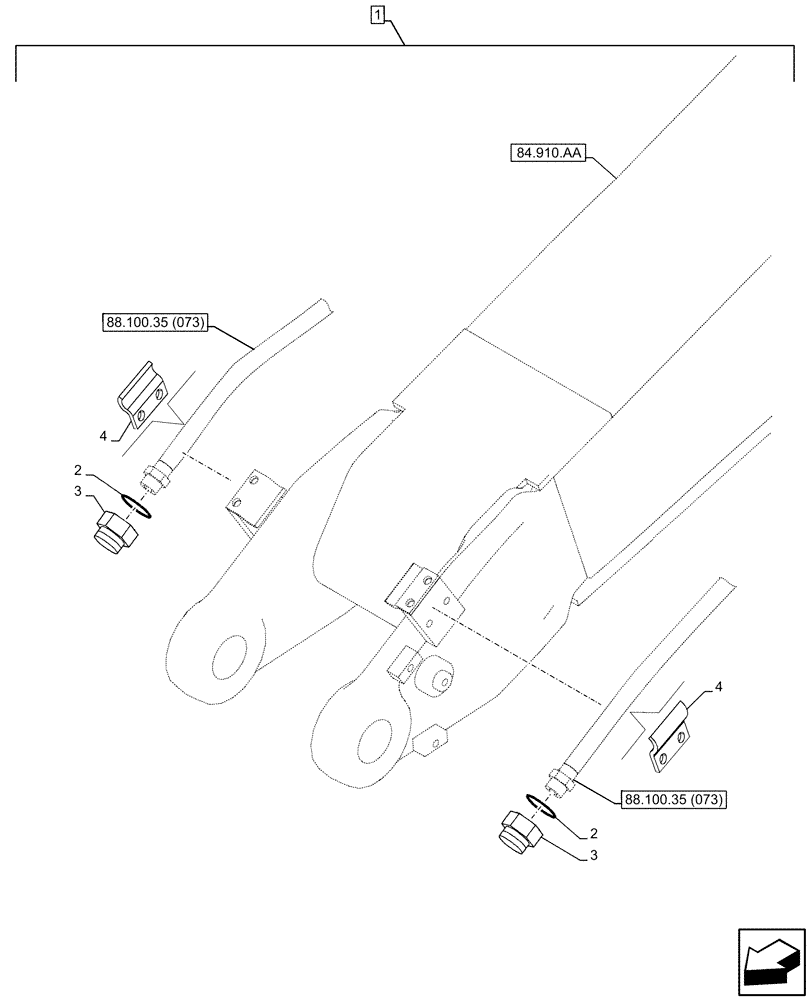

Схема запчастей Case CX160D LC - (88.100.35[074]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
88.100.35 (073)
1
3
2
4
4
88.100.35 (073)
2
3
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KHJ1898

PLUG

2шт.

4

KHV10990

COLLAR

2шт.

Выбрано товаров: 5
