(88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX160D LC (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

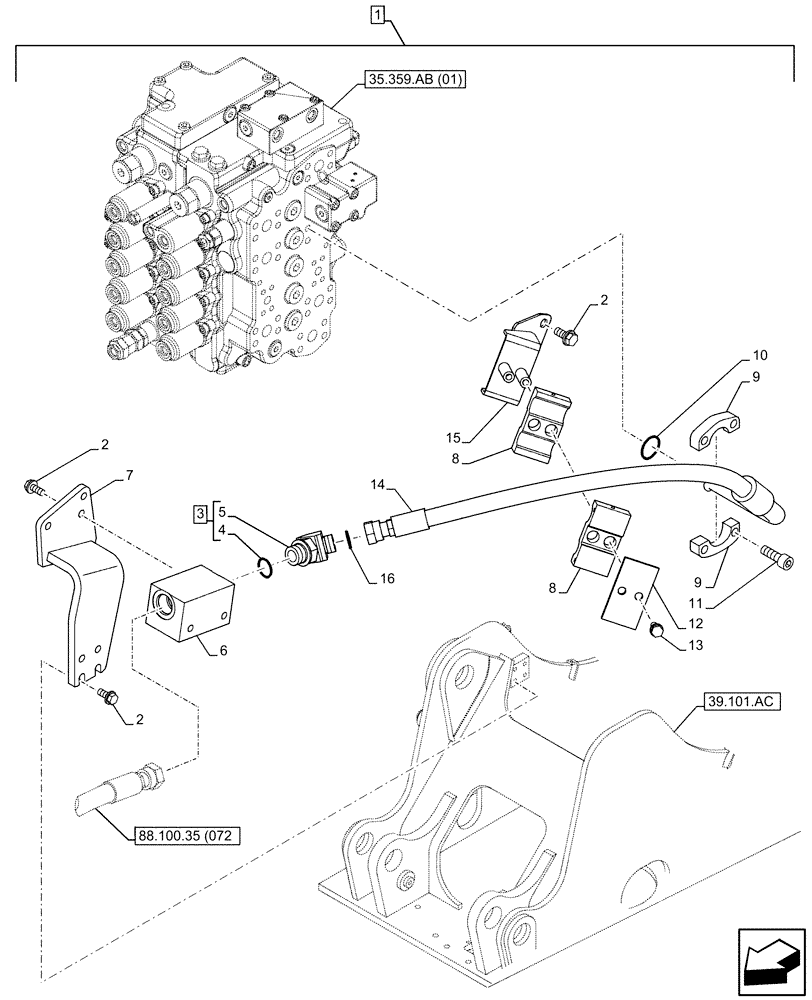

Схема запчастей Case CX160D LC - (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
7
1
10
9
8
13
16
2
35.359.ab (01)
5
88.100.35 (072
6
2
11
2
8
12
9
39.101.ac
15
3
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166352A1

BOLT

M12 x 30mm

8шт.

3

KHJ16290

ELBOW

ASSY, Incl 4, 5

1шт.

4

154523A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

6

KRJ12170

MANIFOLD VALVE

1шт.

7

KRJ16050

SUPPORT

1шт.

8

KLJ14740

HOSE CLAMP

2шт.

9

153458A1

FLANGE

2шт.

10

161097A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M12 x 30mm

4шт.

12

KRH10210

PLATE

1шт.

13

166347A1

BOLT,Sems, M10 x 30mm

2шт.

14

KLJ14870

HYDRAULIC HOSE

Manifold Valve to Control Valve 5A4 Port, 19mm ID x 1150mm

1шт.

15

KNJ18430

BRACKET

1шт.

16

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.
