(88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX160D LC (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

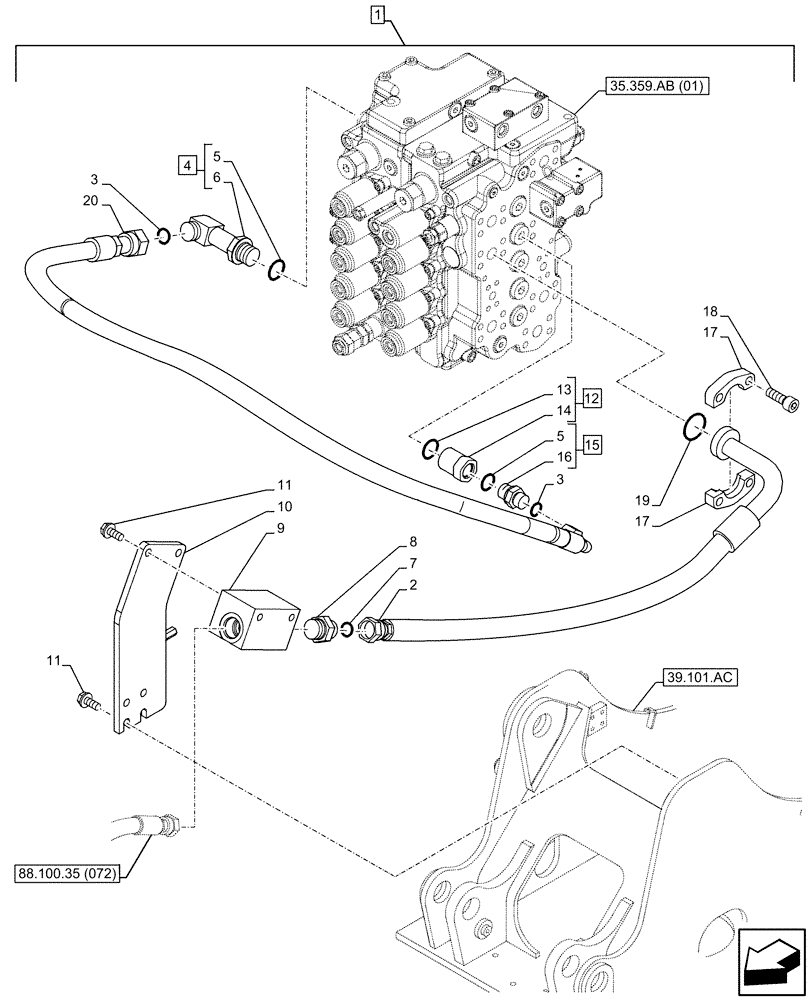

Схема запчастей Case CX160D LC - (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
16
8
35.359.ab (01)
17
39.101.ac
5
5
3
13
11
10
6
11
1
14
88.100.35 (072)
20
19
9
17
15
12
3
7
18
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ14860

COVER

Manifold Valve to Control Valve TB4 Port, 19mm ID x 650mm

1шт.

3

155204A1

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

154487A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 4

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ1941

FITTING

1шт.

9

KRJ12170

MANIFOLD VALVE

1шт.

10

KRJ11470

SUPPORT

1шт.

11

166352A1

BOLT

M12 x 30mm

6шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

154495A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

153458A1

FLANGE

2шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

19

155210A1

O-RING

1шт.

20

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

Control Valve CK1 Port to Control Valve CK2 Port

1шт.
