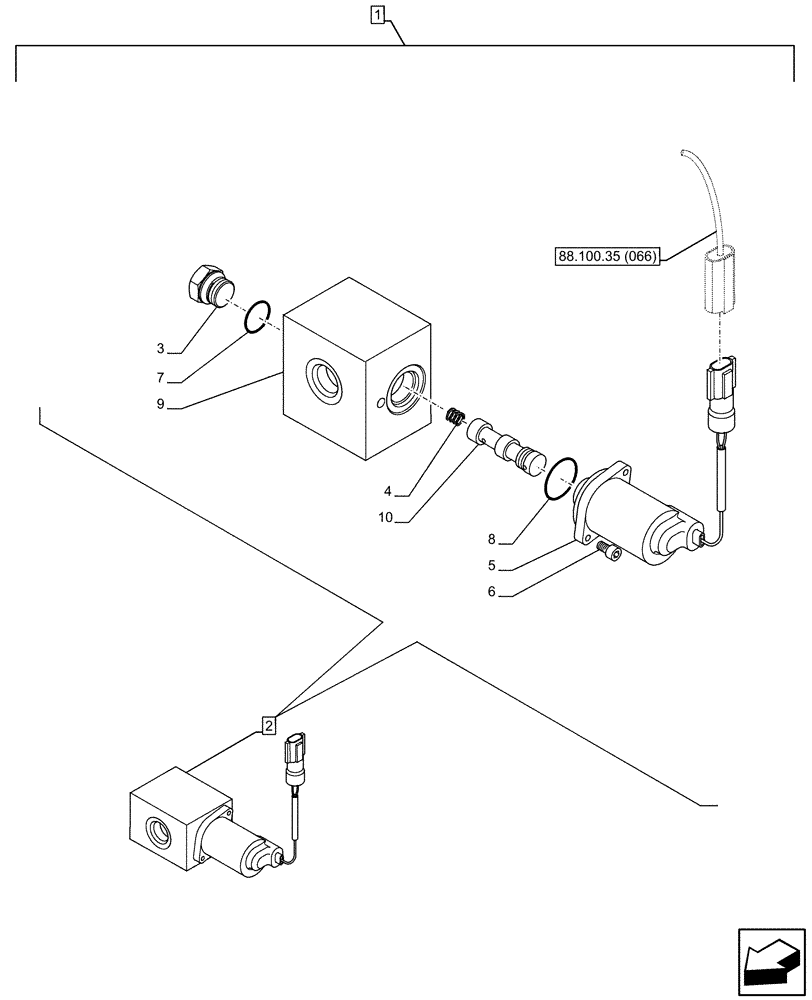

Запчасти Case CX160D LC (88.100.35[065]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

162538A1

VALVE

ASSY, Incl 3 - 10

1шт.

3

155456A1

PLUG

1шт.

4

LSC0278

COMPRESSION SPRING

1шт.

5

CDP0873

SOLENOID VALVE

1шт.

6

160298A1

BOLT,Hex Skt

4шт.

7

154462A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.
