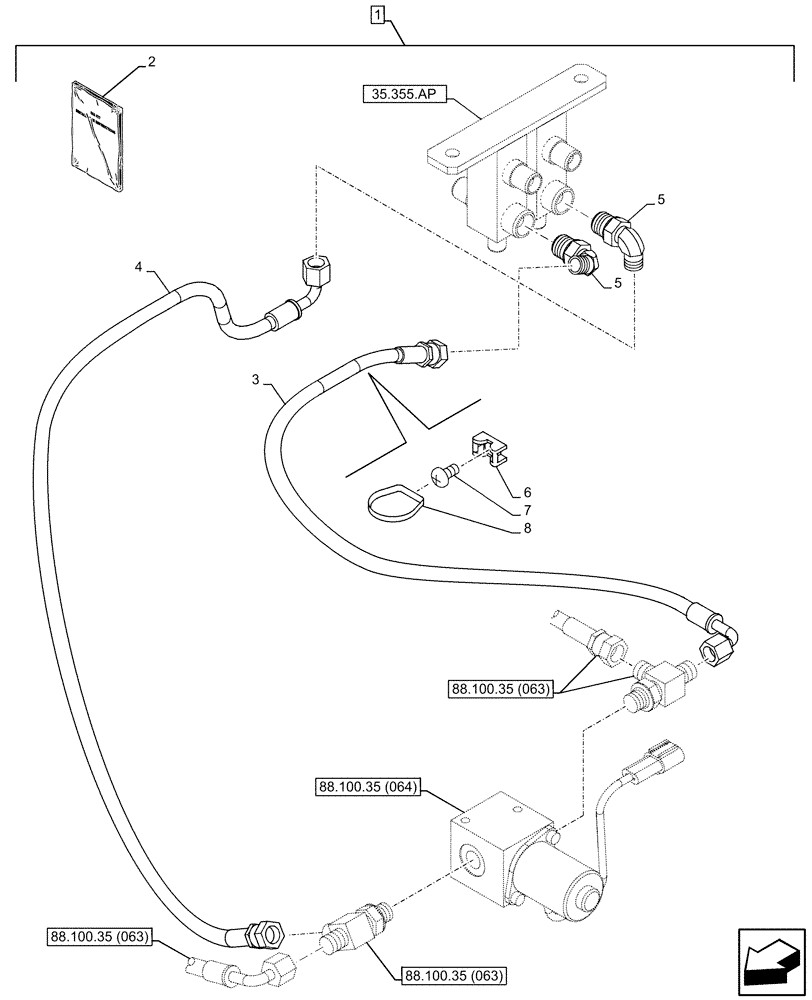

Запчасти Case CX160D LC (88.100.35[062]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

1

KG0LP424-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47891692

INSTRUCTION

1шт.

3

KHJ2195

HOSE

Manifold T5 Port to Solenoide Valve T Port, 6mm ID x 900mm

1шт.

4

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

Manifold P5 Port to Solenoide Valve P Port

1шт.

5

KHJ28580

ELBOW

2шт.

6

150860A1

COLLAR

4шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

8

150496A1

MOUNTING CLIP

L=250mm

4шт.
