(88.100.35[053]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE

Запчасти Case CX160D LC (88.100.35[053]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE (88) - ACCESSORIES

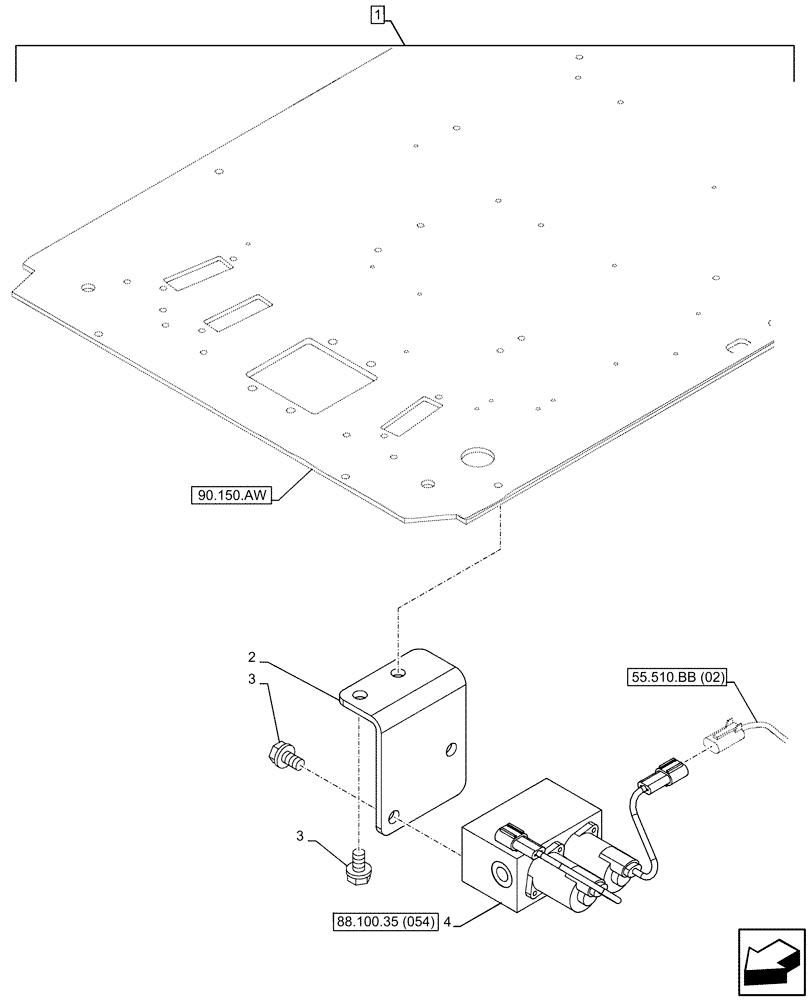

Схема запчастей Case CX160D LC - (88.100.35[053]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE (88) - ACCESSORIES
55.510.bb (02)
3
1
2
4
3
88.100.35 (054)
90.150.aw
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ34470

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

4шт.

4

KHJ14000

VALVE SECTION

ASSY

1шт.

Выбрано товаров: 5
