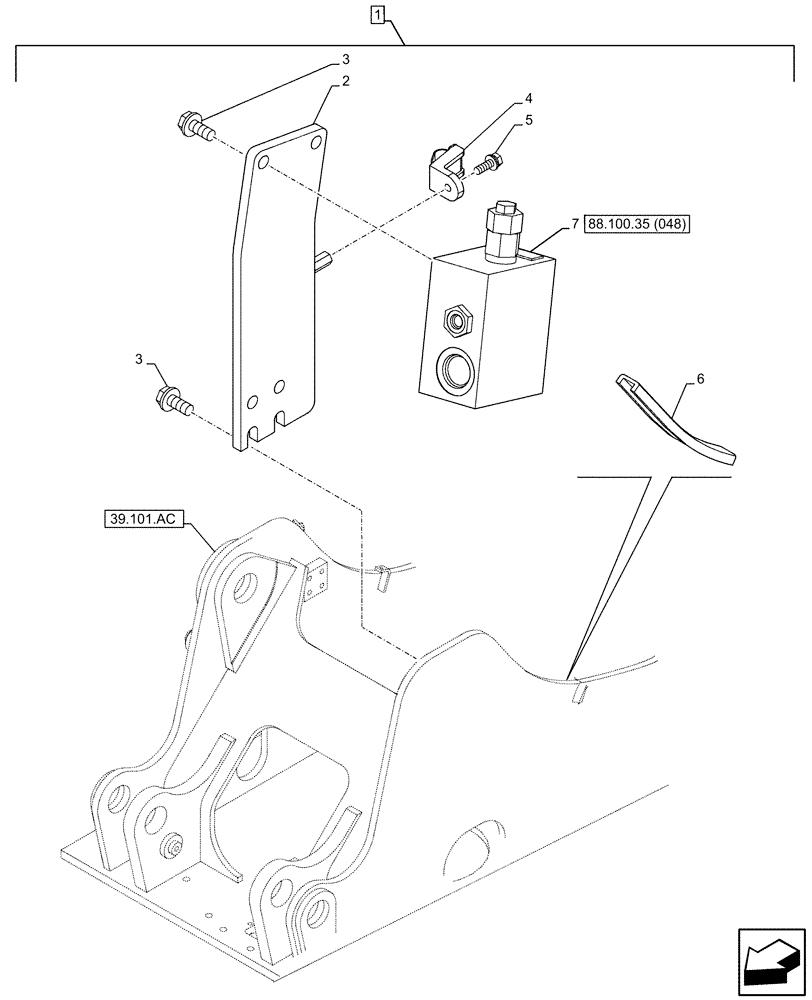

Запчасти Case CX160D LC (88.100.35[047]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SHUT-OFF VALVE (88) - ACCESSORIES

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ11470

SUPPORT

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHR2584

CLAMP

M8

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

162190A1

GROMMET

300mm

1шт.

7

KHJ10410

VALVE SECTION

ASSY

1шт.
