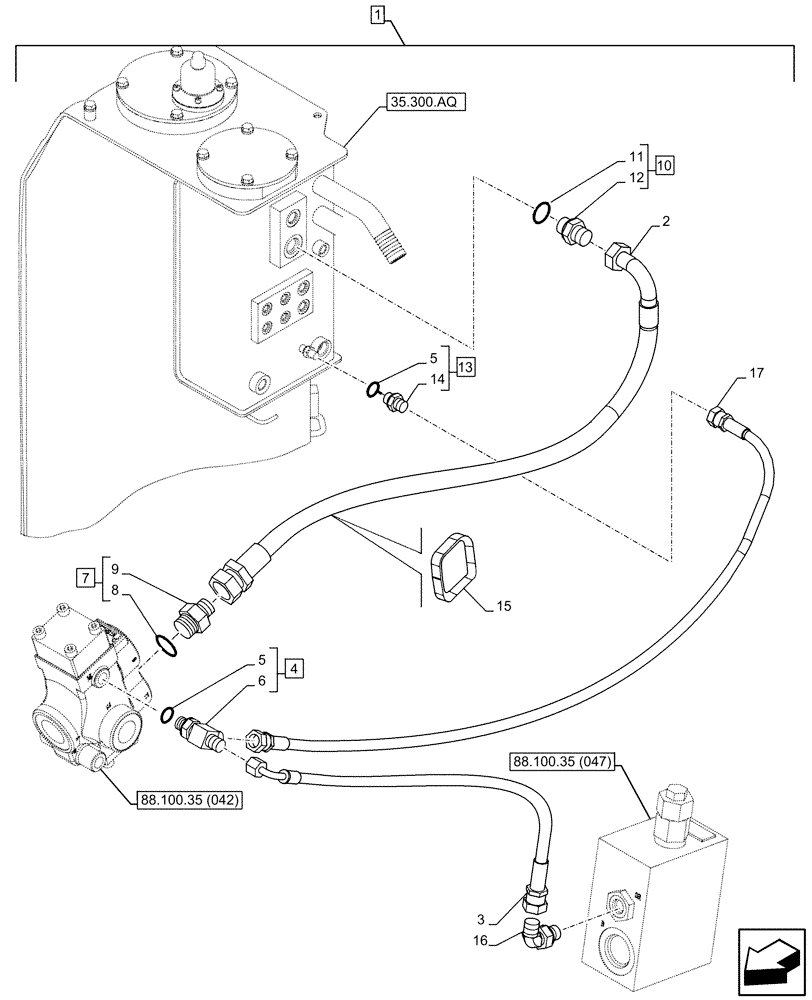

Запчасти Case CX160D LC (88.100.35[046]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLJ14020

HYDRAULIC HOSE

19mm ID x 790mm

1шт.

3

KHJ16880

HOSE

6mm ID x 1100mm

1шт.

4

159497A1

TEE

ASSY, G1/4" x G1/4" G1/4", Incl 5 (Qty 1), 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

7

169040A1

ADAPTER

ASSY, G1" X G3/4", Incl 8, 9

1шт.

8

154523A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 11, 12

1шт.

11

154503A1

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

150496A1

MOUNTING CLIP

250mm

1шт.

16

KHJ28580

ELBOW

1шт.

17

KHJ2245

HOSE

6mm ID x 850mm

1шт.
