Запчасти Case CX160D LC (88.100.35[045]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

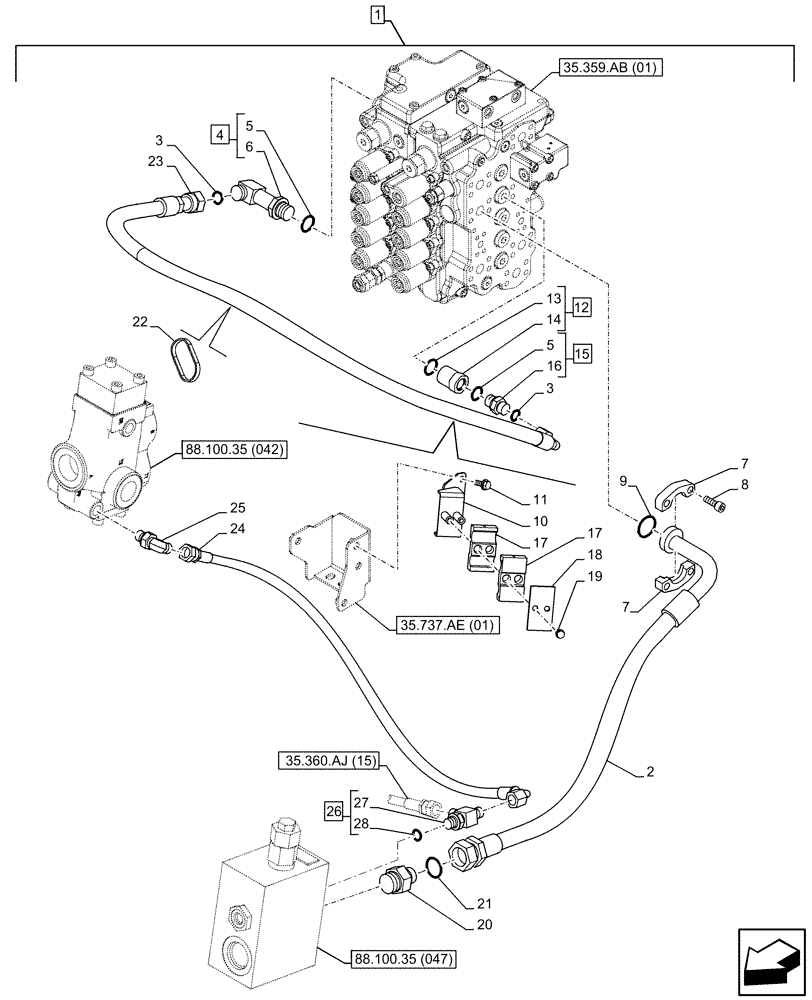

Схема запчастей Case CX160D LC - (88.100.35[045]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES
5
3
12
4
11
18
26
17
35.360.aj (15)
22
1
6
10
7
2
7
3
13
27
14
28
24
25
88.100.35 (047)
5
35.737.ae (01)
8
9
20
88.100.35 (042)
35.359.ab (01)
19
17
15
21
16
23

Артикул

Название

Примечание

Количество

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KLJ14860

HYDRAULIC HOSE

19mm ID x 650mm

1шт.

3

155204A1

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

154487A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 4

1шт.

7

153458A1

FLANGE

2шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

9

155210A1

O-RING

1шт.

10

KNJ18430

BRACKET

1шт.

11

166352A1

BOLT

M12 x 30mm

2шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

154495A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

KLJ14740

HOSE CLAMP

2шт.

18

KRH10210

PLATE

1шт.

19

166347A1

BOLT,Sems, M10 x 30mm

2шт.

20

KHJ1941

FITTING

1шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

22

150071A1

MOUNTING CLIP

380mm

8шт.

23

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

12mm ID x 930mm

1шт.

24

KHJ16860

HOSE

6mm ID X 950mm

1шт.

25

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

26

159497A1

TEE

ASSY, Incl 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Tee, Incl in 26

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 29
