(88.100.35[044]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE

Запчасти Case CX160D LC (88.100.35[044]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES

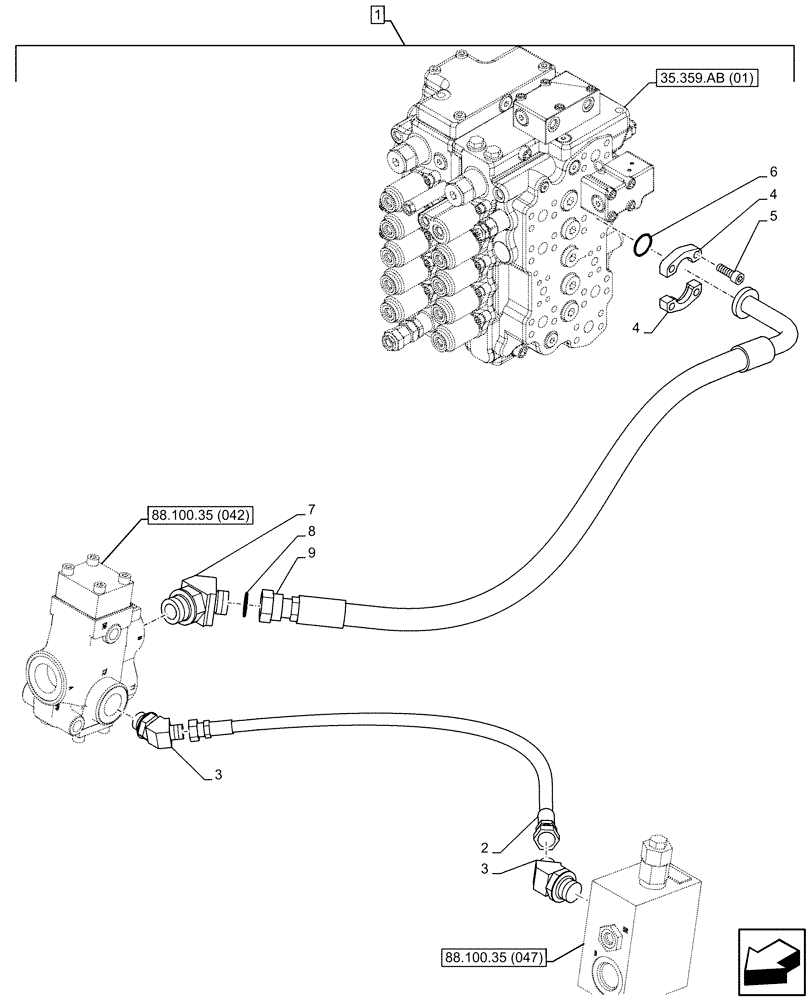

Схема запчастей Case CX160D LC - (88.100.35[044]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, LINE (88) - ACCESSORIES
4
7
2
88.100.35 (047)
35.359.ab (01)
8
3
1
9
3
88.100.35 (042)
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KAJ2882

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

3

KHJ2243

ELBOW

G3/4" x G1/2"

2шт.

4

153458A1

FLANGE

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

6

155210A1

O-RING

1шт.

7

KHJ16290

ELBOW

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

9

KLJ14870

HYDRAULIC HOSE

19mm ID x 1150mm

1шт.
