Запчасти Case CX160D LC (88.100.35[043]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, COMPONENTS (88) - ACCESSORIES

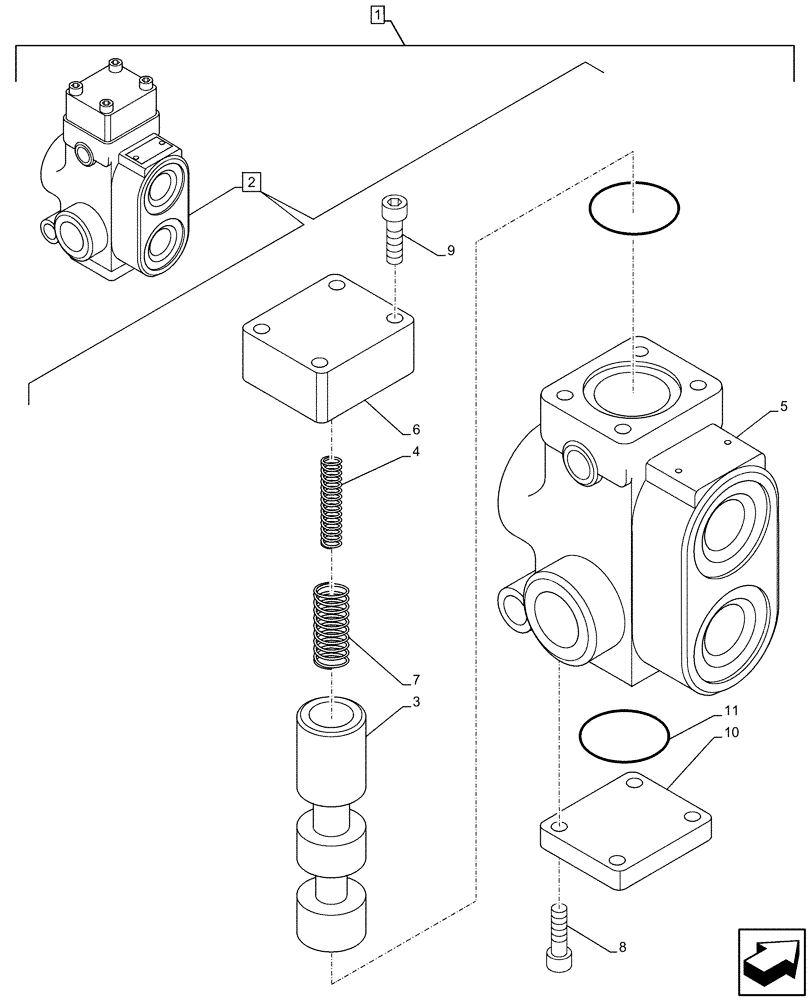

Схема запчастей Case CX160D LC - (88.100.35[043]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE, COMPONENTS (88) - ACCESSORIES
8
4
7
11
1
5
9
6
3
10
2

Артикул

Название

Примечание

Количество

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ10420

VALVE SECTION

ASSY, Incl 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

4

LG005800

COMPRESSION SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

6

LW004970

COVER

1шт.

7

LG005810

COMPRESSION SPRING

1шт.

8

108R008Y025N

BOLT

4шт.

9

108R008Y045R

BOLT

4шт.

10

LW004960

COVER

1шт.

11

154569A1

O-RING

2шт.

Выбрано товаров: 12
