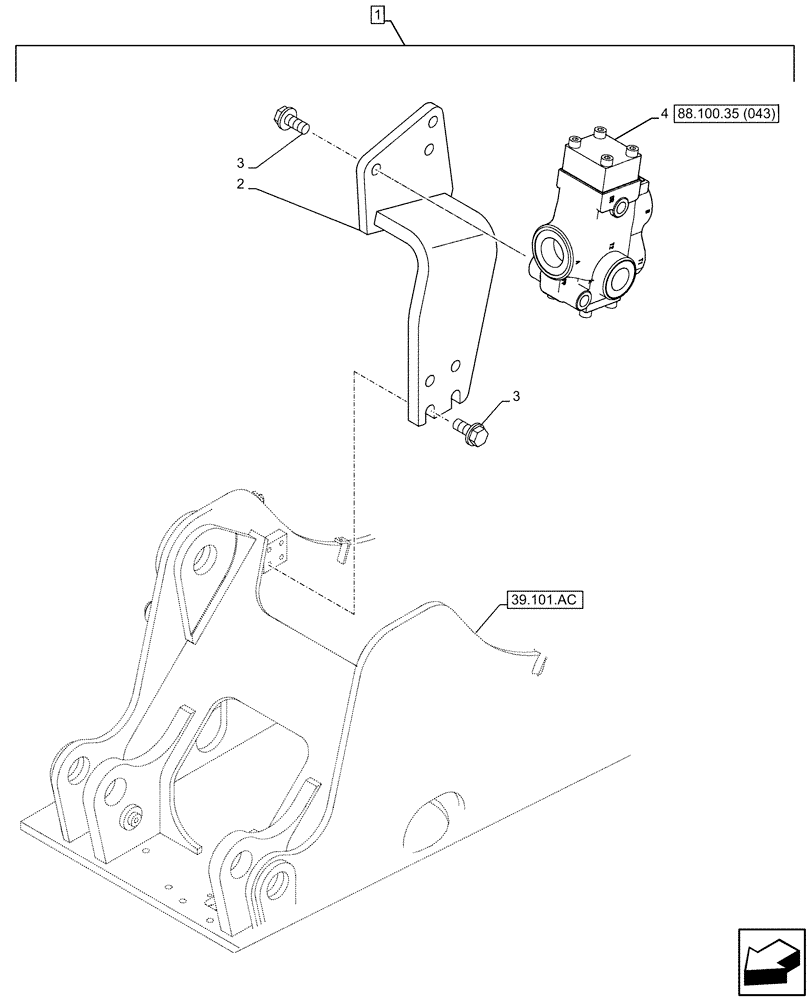

Запчасти Case CX160D LC (88.100.35[042]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, DIRECTIONAL CONTROL VALVE (88) - ACCESSORIES

1

KG0LP420-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ16050

SUPPORT

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHJ10420

VALVE SECTION

ASSY

1шт.
