(88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX160D LC (88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

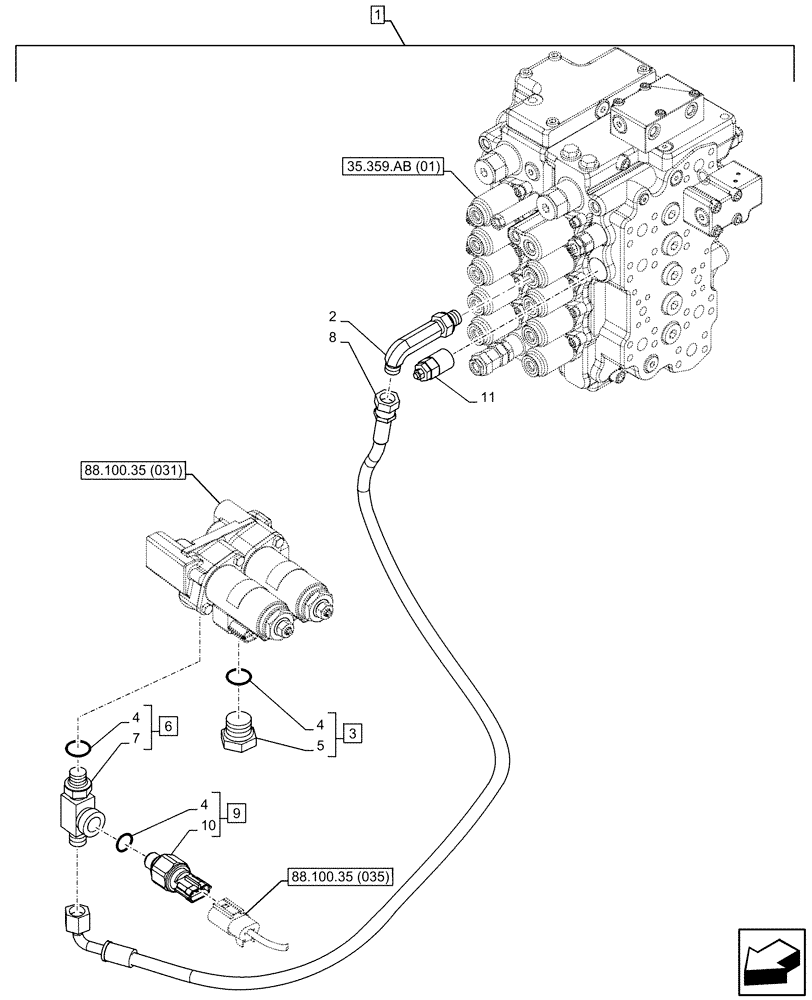

Схема запчастей Case CX160D LC - (88.100.35[034]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
3
9
4
8
4
88.100.35 (031)
35.359.ab (01)
11
2
1
6
5
4
10
7
88.100.35 (035)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP418-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28810

ELBOW

G1/4" x G1/4"

1шт.

3

159002A1

PLUG

G1/4", A1 Port, ASSY, Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

6

167666A1

FITTING

G1/4" x G1/4" x G1/4", A2 Port, ASSY, Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

KHJ2248

HOSE

Proportional Control Valve A2 Port to Control Valve 5A4 Port, 6mm ID x 2950mm

1шт.

9

KHR26940

SENSOR

Pressure Sensor, 5Mpa, G1/4", ASSY, Incl 4 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Sensor, Incl in 9

1шт.

11

KNJ2732

VALVE, PRESSURE RELI

Relief Valve

1шт.
