(88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX160D LC (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

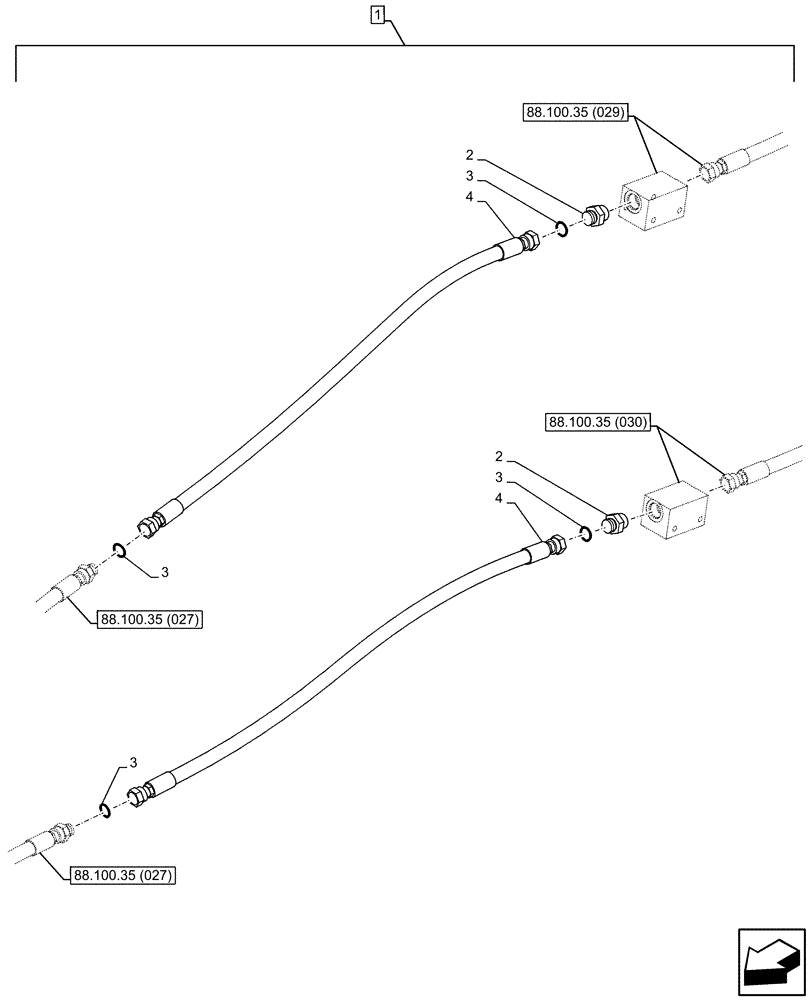

Схема запчастей Case CX160D LC - (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
3
3
3
88.100.35 (027)
88.100.35 (027)
2
88.100.35 (029)
1
2
4
3
4
88.100.35 (030)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP418-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1941

FITTING

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

4

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

2шт.
