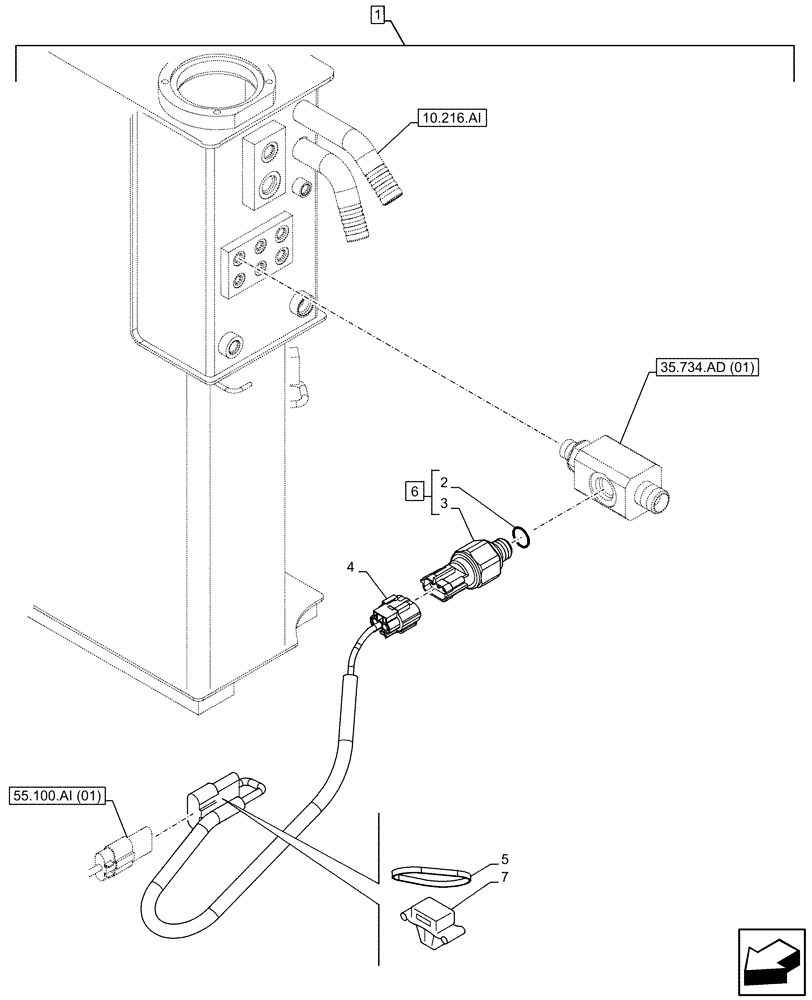

Запчасти Case CX160D LC (88.100.35[024]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG0LP416-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 6

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

150496A1

MOUNTING CLIP

2шт.

6

KHR32870

SENSOR

Pressure Sensor, 1MPa, ASSY, Incl 2, 3

1шт.

7

KHR2581

CLAMP

1шт.
