(88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS

Запчасти Case CX160D LC (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES

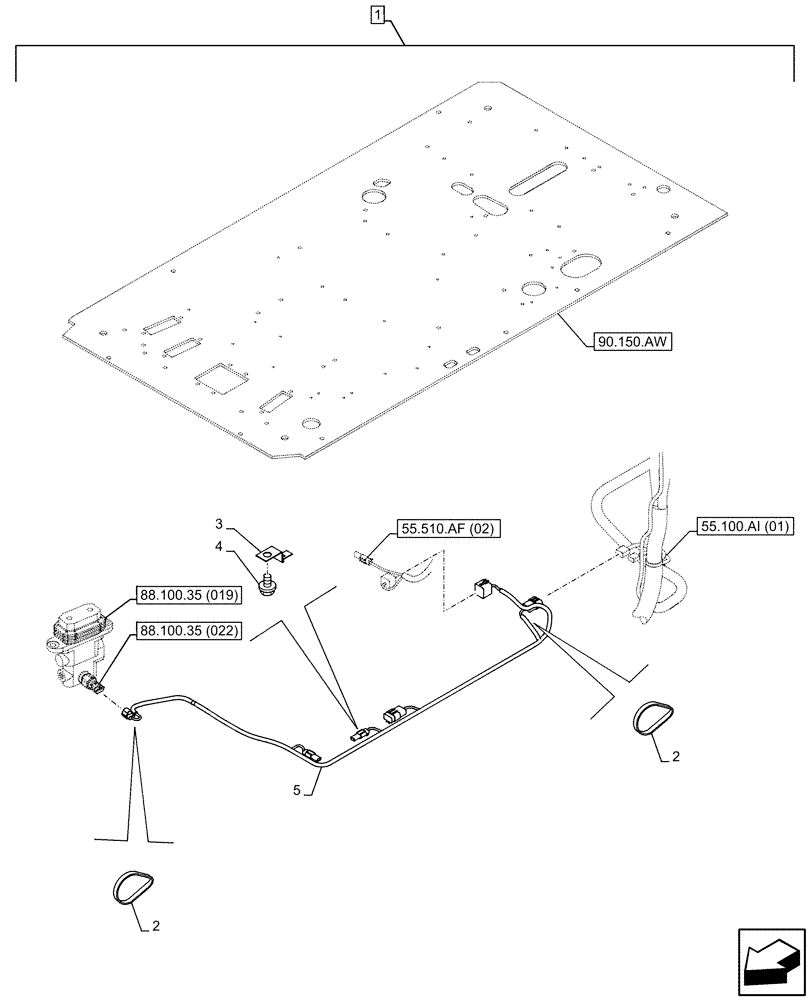

Схема запчастей Case CX160D LC - (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES
88.100.35 (022)
3
55.510.af (02)
5
2
88.100.35 (019)
1
55.100.ai (01)
2
90.150.aw
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP416-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

L=250mm

3шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR39480

WIRE HARNESS

1шт.

Выбрано товаров: 6
