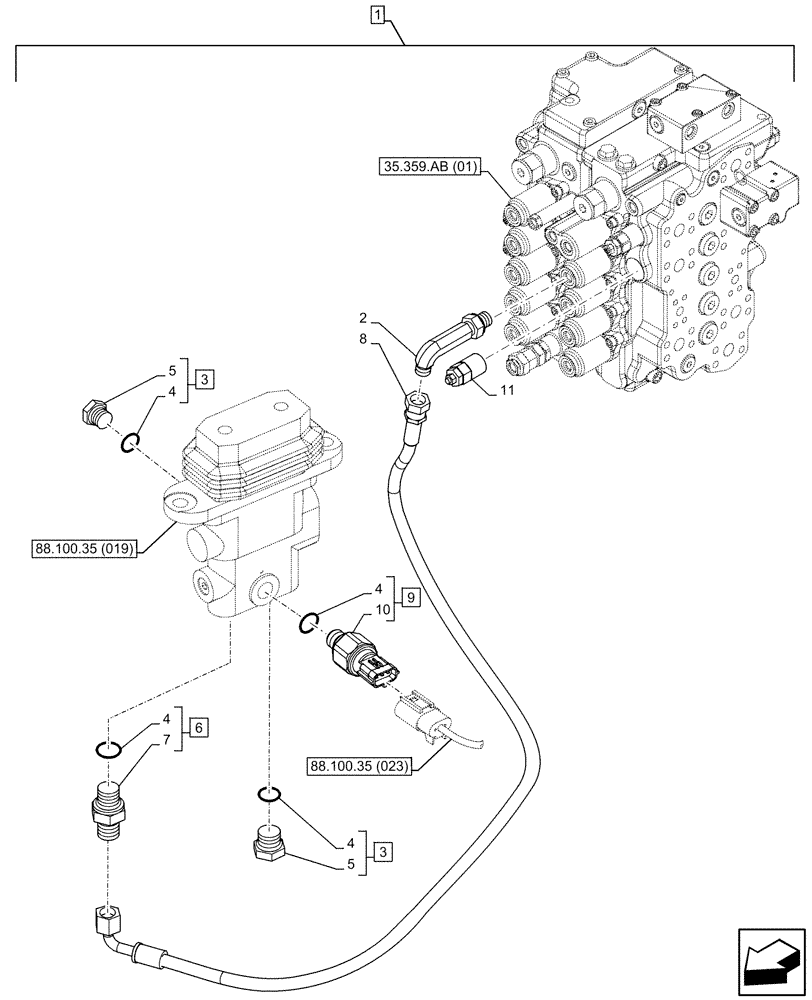

Запчасти Case CX160D LC (88.100.35[022]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

1

KG0LP416-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28810

ELBOW

G1/4" x G1/4"

1шт.

3

159002A1

PLUG

G1/4", C1 and A Ports, ASSY, Incl 4 (Qty 2), 5

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

8

KHJ2248

HOSE

Foot Control Valve B Port to Control Valve, 6.3mm ID x 2950mm

1шт.

9

KHR26940

SENSOR

Pressure Sensor, 5MPa, C2 Port, ASSY, Incl 4 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 9

1шт.

11

KNJ2732

VALVE, PRESSURE RELI

1шт.
