(88.100.35[017]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, MANIFOLD VALVE, LINE

Запчасти Case CX160D LC (88.100.35[017]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

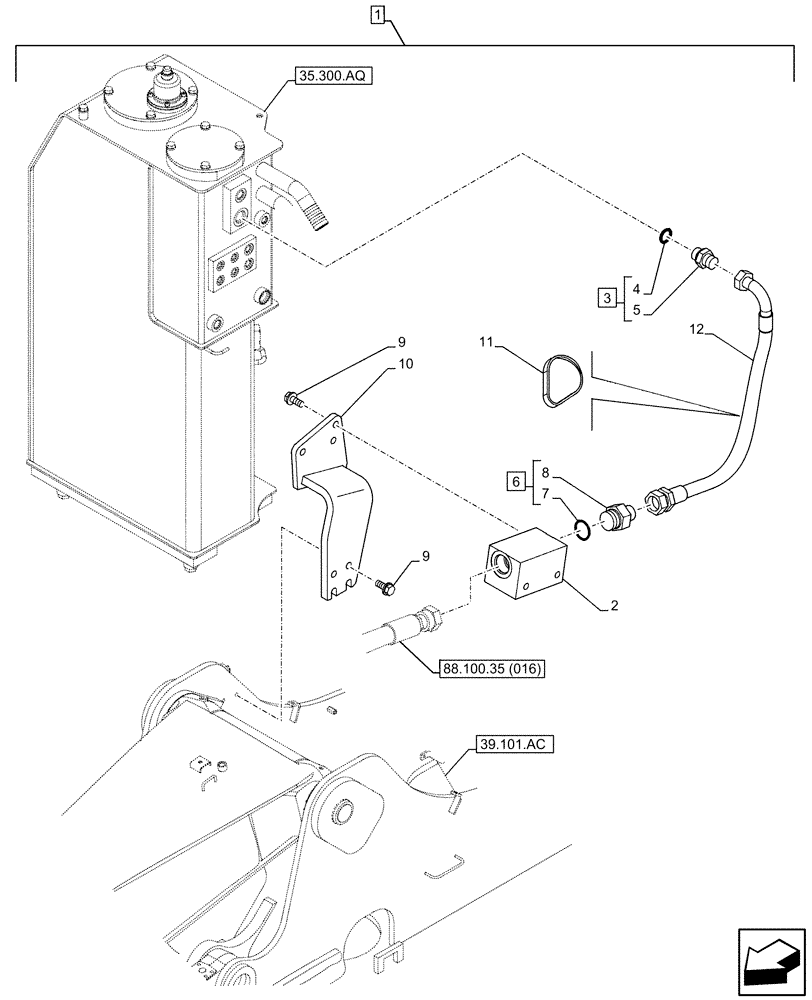

Схема запчастей Case CX160D LC - (88.100.35[017]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES
7
12
35.300.aq
9
3
9
39.101.ac
11
10
5
6
2
88.100.35 (016)
1
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP416-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ12170

MANIFOLD VALVE

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

G3/4" x G3/4", ASSY, Incl 4, 5

1шт.

4

154503A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

169040A1

ADAPTER

G1" x G3/4", ASSY, Incl 7, 8

1шт.

7

154523A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

166352A1

BOLT

M12 x 30mm

6шт.

10

KRJ16050

SUPPORT

1шт.

11

150496A1

MOUNTING CLIP

1шт.

12

KLJ14020

HYDRAULIC HOSE

Manifold Valve to Hydraulic Oil Reservoil, 19mm ID x 790mm

1шт.
