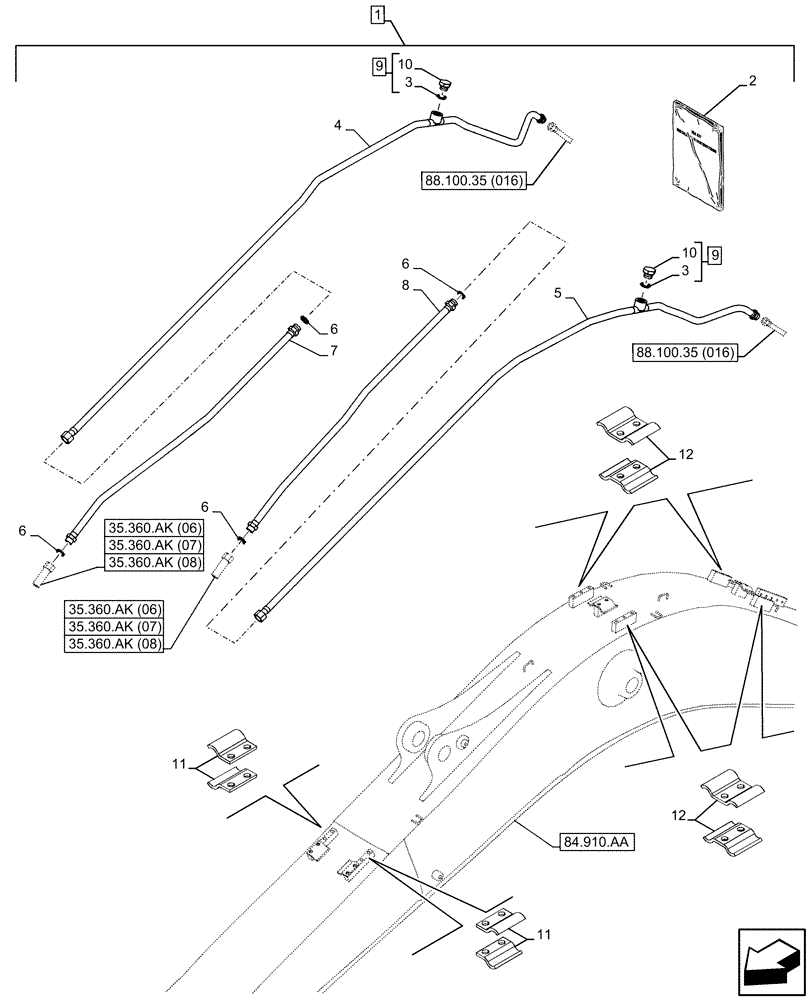

Запчасти Case CX160D LC (88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG0LP416-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900369

INSTRUCTION

1шт.

3

154503A1

O-RING

2шт.

4

KLV13710

HYD TUBE,Dia 27.2

1-3/16'' ID, RH

1шт.

5

KLV13700

HYD TUBE,Dia 27.2

1-3/16'' ID, LH

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

7

KLV12390

HYD TUBE,27.2mm X 20.8mm Adaptor

RH

1шт.

8

KLV12380

HYD TUBE,20.8 mm ID x 27.2 mm OD Adaptor

LH

1шт.

9

152924A1

PLUG

G3/4", ASSY, Incl 3, 10

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

2шт.

11

KHV10460

COLLAR CLAMP

4шт.

12

KHV10450

COLLAR CLAMP

8шт.
