(88.100.35[013]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.05M)

Запчасти Case CX160D LC (88.100.35[013]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.05M) (88) - ACCESSORIES

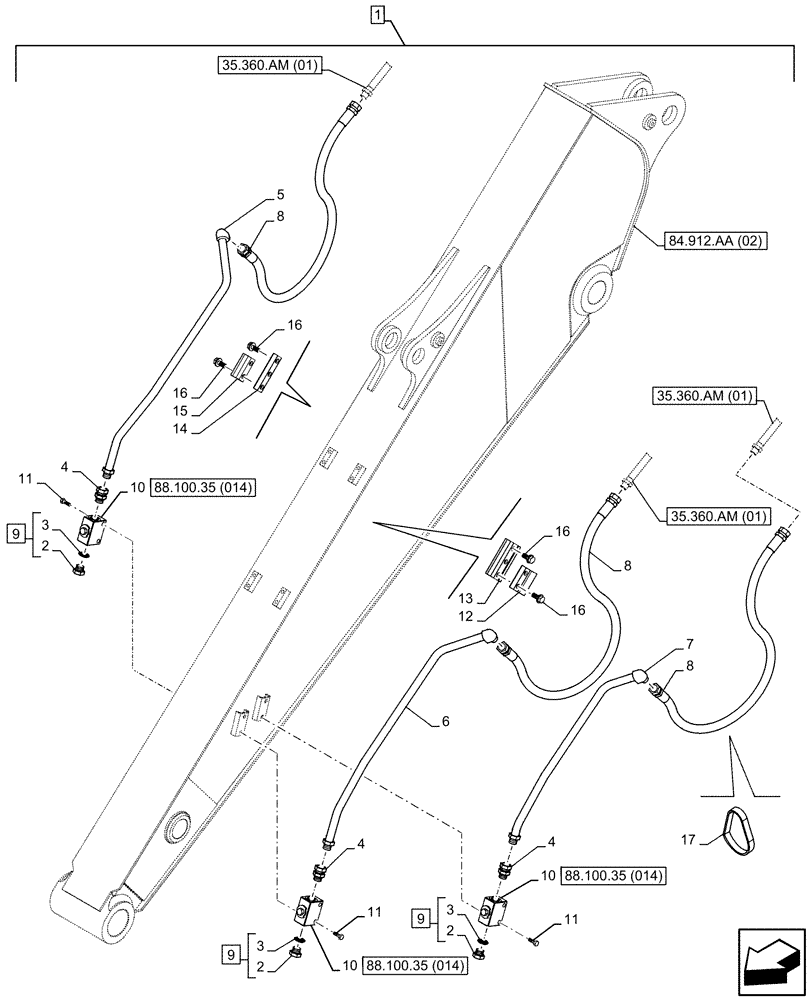

Схема запчастей Case CX160D LC - (88.100.35[013]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.05M) (88) - ACCESSORIES
16
88.100.35 (014)
6
84.912.aa (02)
35.360.am (01)
11
7
16
10
12
15
16
2
2
9
4
4
35.360.am (01)
3
11
17
9
4
13
9
10
16
3
3
14
1
2
88.100.35 (014)
8
35.360.am (01)
88.100.35 (014)
5
8
10
8
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP211-00

CONSTRUCTION DIA

Auxiliary Hydraulic Low Flow Arm, L=3.05m, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KLV12480

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

6

KLV12470

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

7

KLV12490

HYD TUBE,21.7mm X 16.1mm Adaptor and elbow

1шт.

8

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

3шт.

9

159085A1

PLUG

ASSY, Incl 2, 3

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

2шт.

13

KHV10490

COLLAR CLAMP

2шт.

14

KHV10510

COLLAR CLAMP

2шт.

15

KHV10500

COLLAR CLAMP

2шт.

16

166352A1

BOLT

12шт.

17

150496A1

MOUNTING CLIP

10шт.
