(88.100.35[007]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM (L=3.05M)

Запчасти Case CX160D LC (88.100.35[007]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM (L=3.05M) (88) - ACCESSORIES

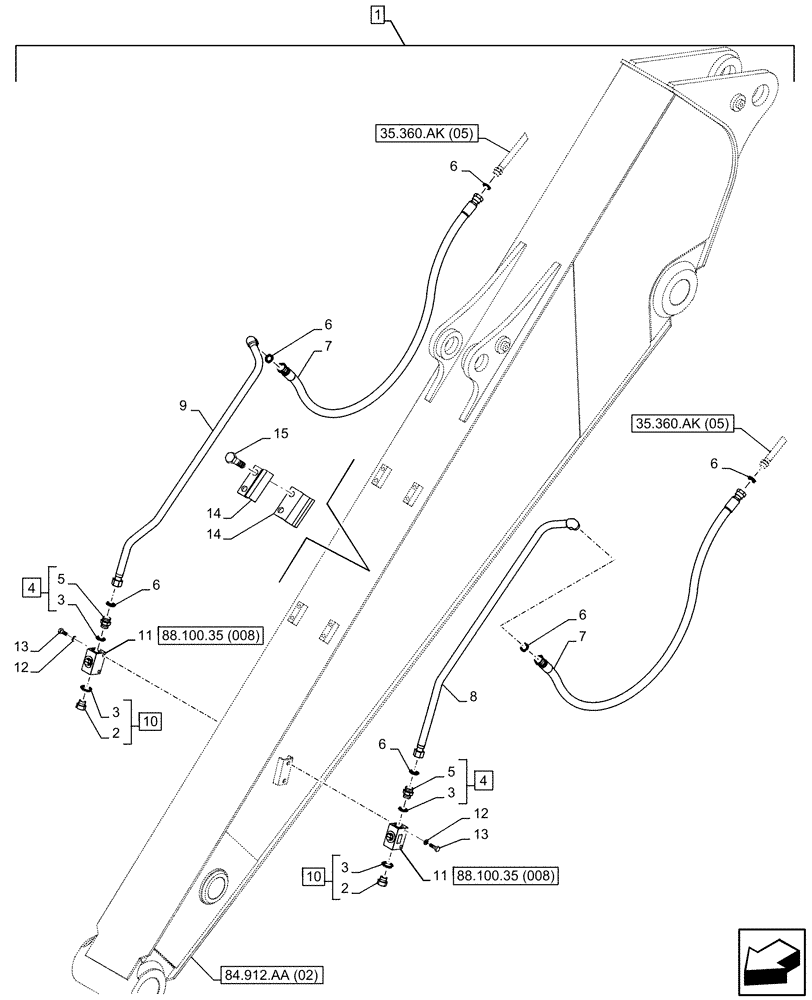

Схема запчастей Case CX160D LC - (88.100.35[007]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM (L=3.05M) (88) - ACCESSORIES
3
6
15
2
14
4
11
14
13
1
6
11
88.100.35 (008)
8
10
13
4
3
84.912.aa (02)
35.360.ak (05)
9
6
3
7
7
35.360.ak (05)
3
2
5
5
10
12
88.100.35 (008)
6
6
6
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP208-00

CONSTRUCTION DIA

Auxiliary Hydraulic Single Acting Arm, L= 3.05m, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

3

154503A1

O-RING

4шт.

4

KHJ1348

ADAPTER

ASSY, Incl 3 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

2шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

7

KLV12920

HOSE ASSY.,19.00 mm ID x 1650.00 mm

2шт.

8

KLV12400

HYD TUBE,27.2mm X 20.8mm Adaptor and elbow

1шт.

9

KLV12410

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

10

152924A1

PLUG

ASSY, G3/4", Incl 2, 3 (Qty 2)

2шт.

11

KHV10710

VALVE

ASSY, RH/LH

2шт.

12

150811A1

WASHER

RH/LH

4шт.

13

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

RH/LH

4шт.

14

KHV10460

COLLAR CLAMP

8шт.

15

166352A1

BOLT

8шт.
