(88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE

Запчасти Case CX160D LC (88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE (88) - ACCESSORIES

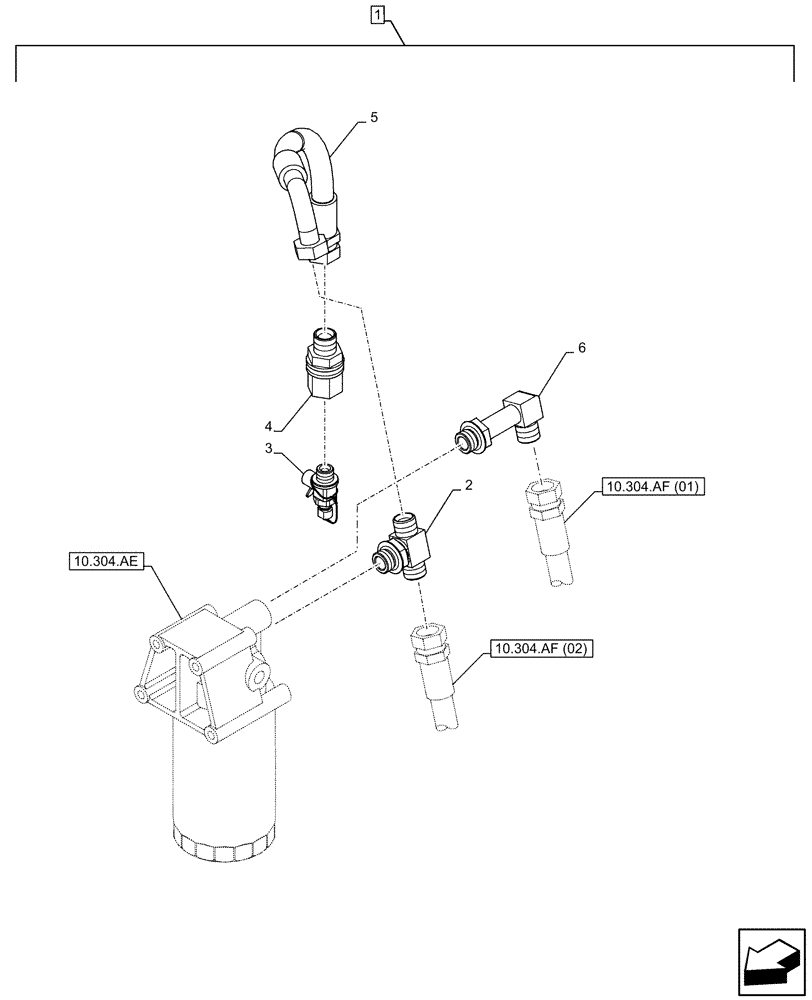

Схема запчастей Case CX160D LC - (88.100.10[02]) - DIA KIT, HYDRAULIC OIL, ENGINE OIL FILTER, DRAIN LINE (88) - ACCESSORIES
3
4
10.304.af (01)
5
2
10.304.ae
6
1
10.304.af (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0LP440-00

CONSTRUCTION DIA

Oil Sampling, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHH18720

TEE

G3/4" x G3/4" x G3/4"

1шт.

3

KHH18621

DRAINCOCK/TAP SUPPLY

1шт.

4

KHH17400

ADAPTER

1шт.

5

KNH13130

HYDRAULIC HOSE

460mm

1шт.

6

KHH14690

ELBOW

G3/4"

1шт.

Выбрано товаров: 7
