Запчасти Case CX160D LC (88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE (88) - ACCESSORIES

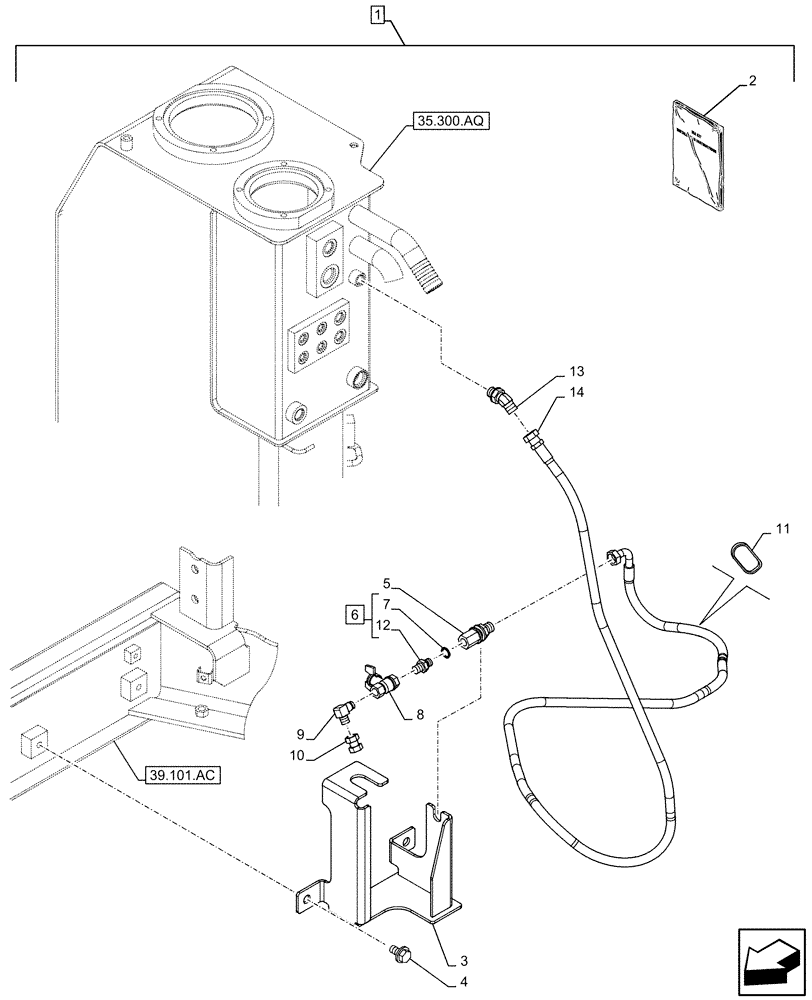

Схема запчастей Case CX160D LC - (88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE (88) - ACCESSORIES
10
1
39.101.ac
9
35.300.aq
2
6
11
7
5
13
4
14
12
8
3

Артикул

Название

Примечание

Количество

1

KG0LP440-00

CONSTRUCTION DIA

Oil Sampling, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928770

INSTRUCTION

1шт.

2

47929306

INSTRUCTION

1шт.

3

KNJ22700

BRACKET

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

5

KHJ0569

ADAPTER

G1/4" x G3/8"

1шт.

6

152899A1

HYD CONNECTOR

ASSY, Incl 7, 12

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

158923A1

DRAIN VALVE

1шт.

9

153596A1

ADAPTER

1шт.

10

158842A1

PLUG

G1/4"

1шт.

11

150496A1

MOUNTING CLIP

250mm

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

13

KHJ28640

ELBOW

G3/8" x G3/8"

1шт.

14

KHJ33520

HYDRAULIC HOSE

L=2350mm

1шт.

Выбрано товаров: 16
