(84.910.AD[02]) - VAR - 481858 - BOOM, BUSHING (L=5.15M)

Запчасти Case CX160D LC (84.910.AD[02]) - VAR - 481858 - BOOM, BUSHING (L=5.15M) (84) - BOOMS, DIPPERS & BUCKETS

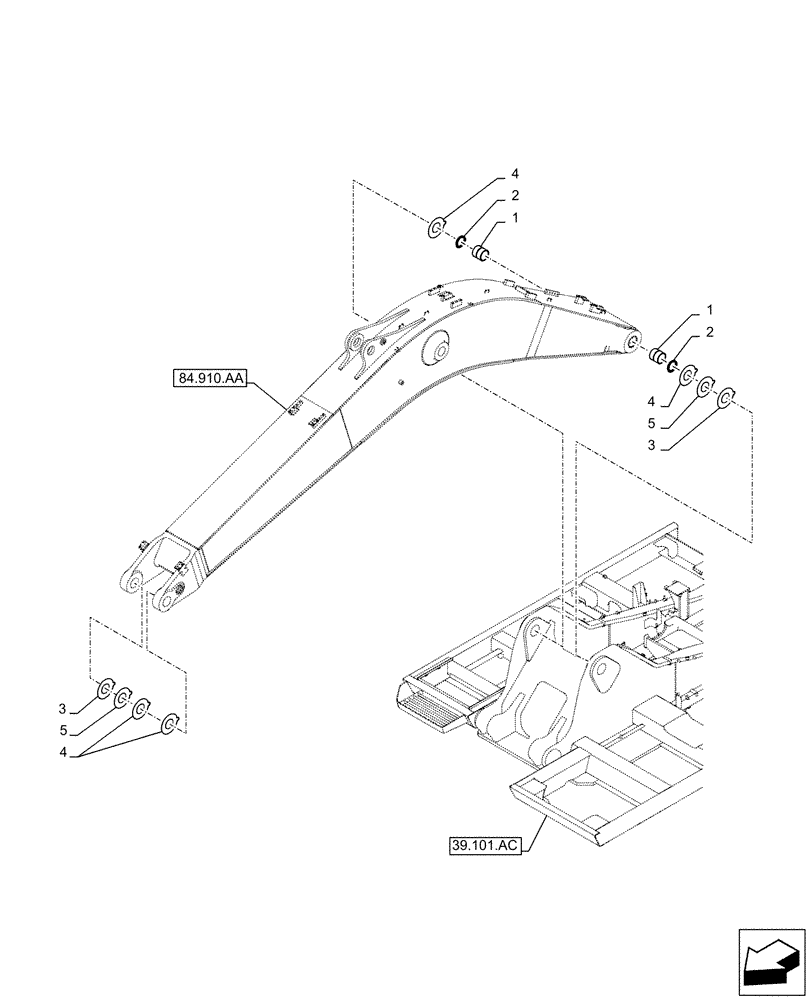

Схема запчастей Case CX160D LC - (84.910.AD[02]) - VAR - 481858 - BOOM, BUSHING (L=5.15M) (84) - BOOMS, DIPPERS & BUCKETS
39.101.ac
2
2
1
4
3
5
3
5
4
84.910.aa
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV1388

SELF LUB RING

2шт.

Part is Included in Boom Assembly PN KLV15401

1шт.

2

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

Part is Included in Boom Assembly PN KLV15401

1шт.

3

KLV11150

SHIM

2mm

2шт.

4

KLV11140

SHIM

1mm

4шт.

5

KLV15860

SHIM

1.5mm

2шт.
