(84.910.AD[01]) - VAR - 481858, 481064 - BOOM, CYLINDER, BUSHING

Запчасти Case CX160D LC (84.910.AD[01]) - VAR - 481858, 481064 - BOOM, CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

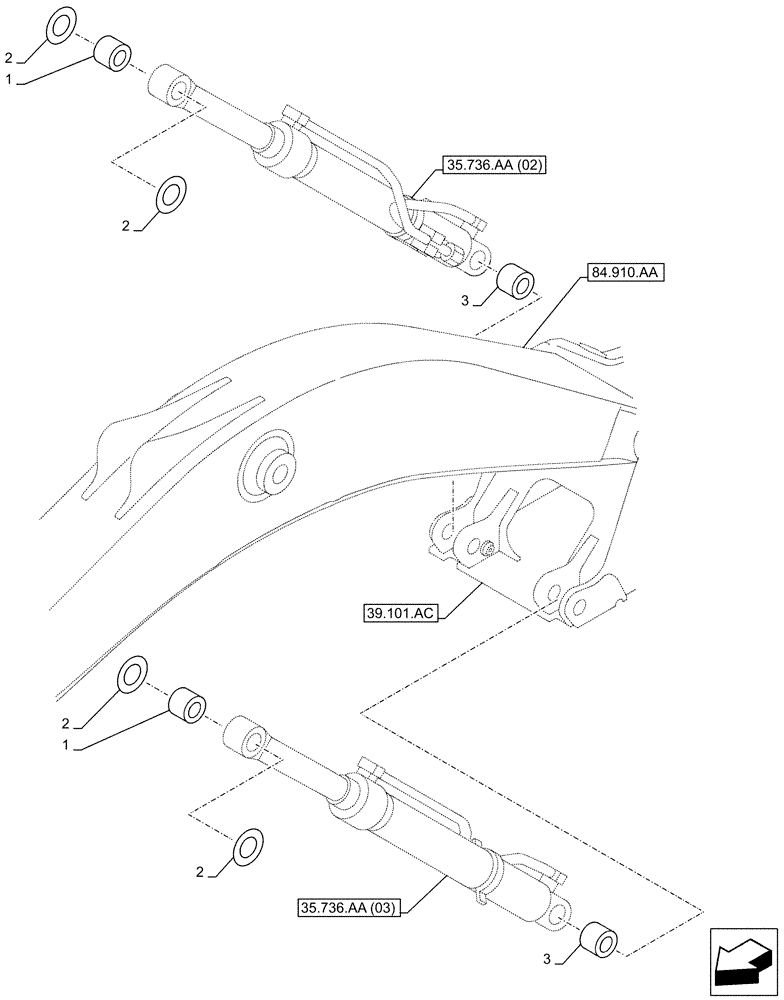

Схема запчастей Case CX160D LC - (84.910.AD[01]) - VAR - 481858, 481064 - BOOM, CYLINDER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
2
1
39.101.ac
2
84.910.aa
3
2
3
35.736.aa (03)
1
35.736.aa (02)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV1388

SELF LUB RING

2шт.

Parts are Included in Boom Cylinder Assembly PN KLV10960, PN KLV10980, PN KLV11000, KLV11020

1шт.

2

161294A1

SHIM

4шт.

3

KLV10050

SELF LUB RING

2шт.

Parts are Included in Boom Cylinder Assembly PN KLV10960, PN KLV10980, PN KLV11000, KLV11020

1шт.
