(84.100.AM[02]) - VAR - 461023, 481064 - BUSHING, BUCKET, LINK, W/O HOOK, SAFETY VALVE

Запчасти Case CX160D LC (84.100.AM[02]) - VAR - 461023, 481064 - BUSHING, BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

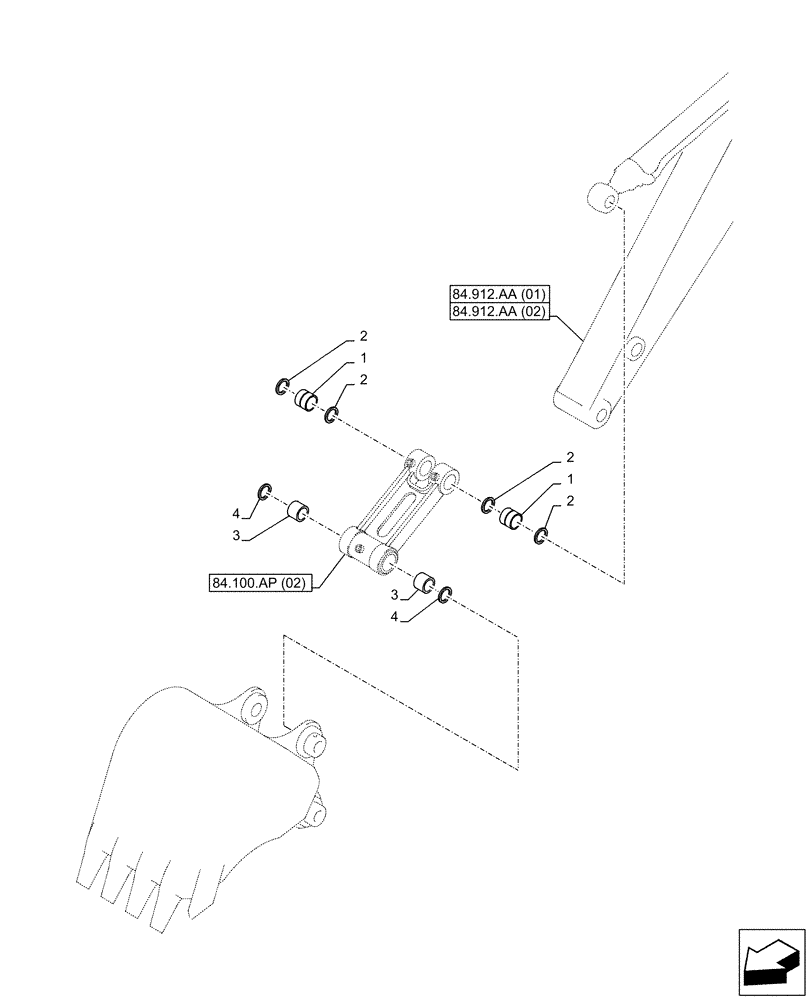

Схема запчастей Case CX160D LC - (84.100.AM[02]) - VAR - 461023, 481064 - BUSHING, BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS
3
2
84.912.aa (01)
4
1
2
1
84.912.aa (02)
2
4
2
84.100.ap (02)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV1140

SELF LUB RING

2шт.

2

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

3

KLV11110

BUSHING

2шт.

4

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.
