(84.100.293) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT

Запчасти Case CX160D LC (84.100.293) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT (84) - BOOMS, DIPPERS & BUCKETS

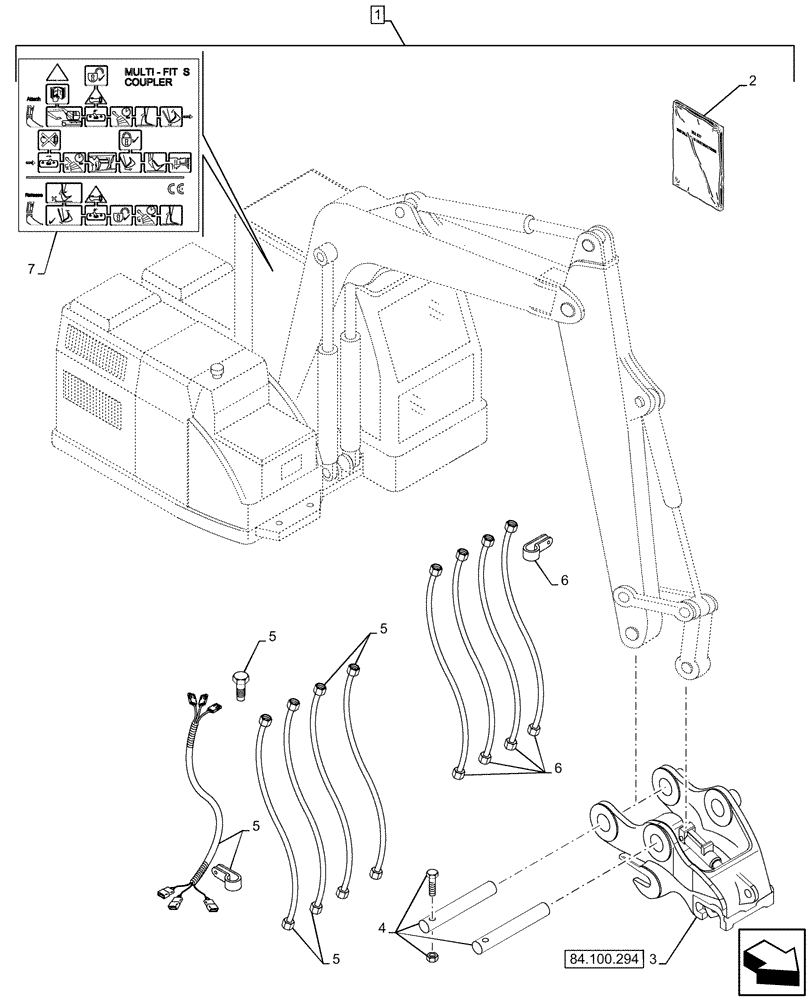

Схема запчастей Case CX160D LC - (84.100.293) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT (84) - BOOMS, DIPPERS & BUCKETS
84.100.294
3
6
5
7
5
1
2
4
5
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47867960

CONSTRUCTION DIA

Kit, Quick Male Couplig, ASSY, Incl 2 - 7

1шт.

2

47848479

INSTRUCTION

Guide Installation

1шт.

3

47603184

QUICK-HITCH

ASSY

1шт.

4

ZKDPCX1605

KIT

Bucket Pin

1шт.

5

47867964

KIT

Hose

1шт.

6

47867966

KIT

Hose

1шт.

7

47508618

DECAL

Cab

1шт.
