(55.988.AD) - SELECTIVE, CATALYTIC REDUCTION, WIRE HARNESS

Запчасти Case CX160D LC (55.988.AD) - SELECTIVE, CATALYTIC REDUCTION, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

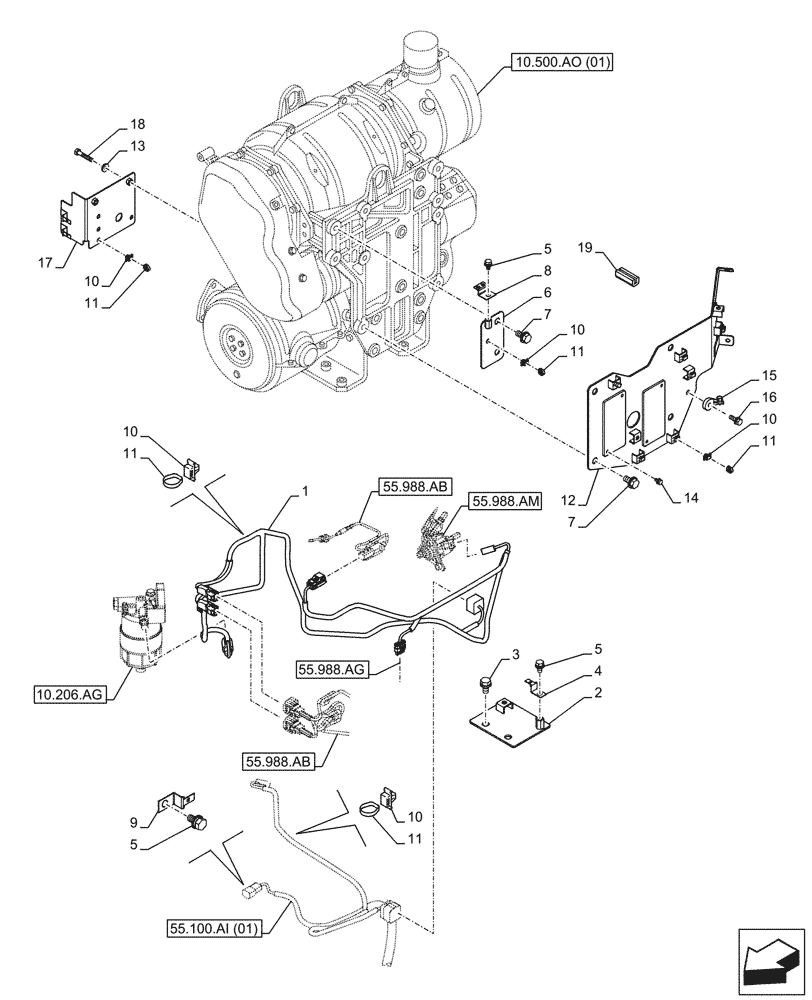

Схема запчастей Case CX160D LC - (55.988.AD) - SELECTIVE, CATALYTIC REDUCTION, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
5
10.206.ag
11
3
12
7
5
8
11
10
55.988.ab
11
9
55.988.ag
10
15
14
6
55.988.ab
10
17
11
4
10
2
10
11
1
10.500.ao (01)
18
55.988.am
5
19
13
55.100.ai (01)
7
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNR14350

WIRE HARNESS

Selective, Catalytic Reduction

1шт.

2

KNR14360

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

158962A1

CLIP

1шт.

5

167518A1

BOLT

M8 x 16mm

3шт.

6

KNR14050

BRACKET

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

6шт.

8

KHR37570

CLIP

1шт.

9

KHR37410

CLIP

1шт.

10

KHR10220

MOUNTING CLIP

20шт.

11

150496A1

MOUNTING CLIP

250mm

24шт.

12

KNR14340

BRACKET

1шт.

13

153081A1

WASHER

2шт.

14

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

15

KHR2584

CLAMP

1шт.

16

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

17

KNR14060

BRACKET

1шт.

18

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

19

KHR43950

SEAL PROTECTION

1шт.
