(55.950.AA) - VAR - 461869 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (55.950.AA) - VAR - 461869 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

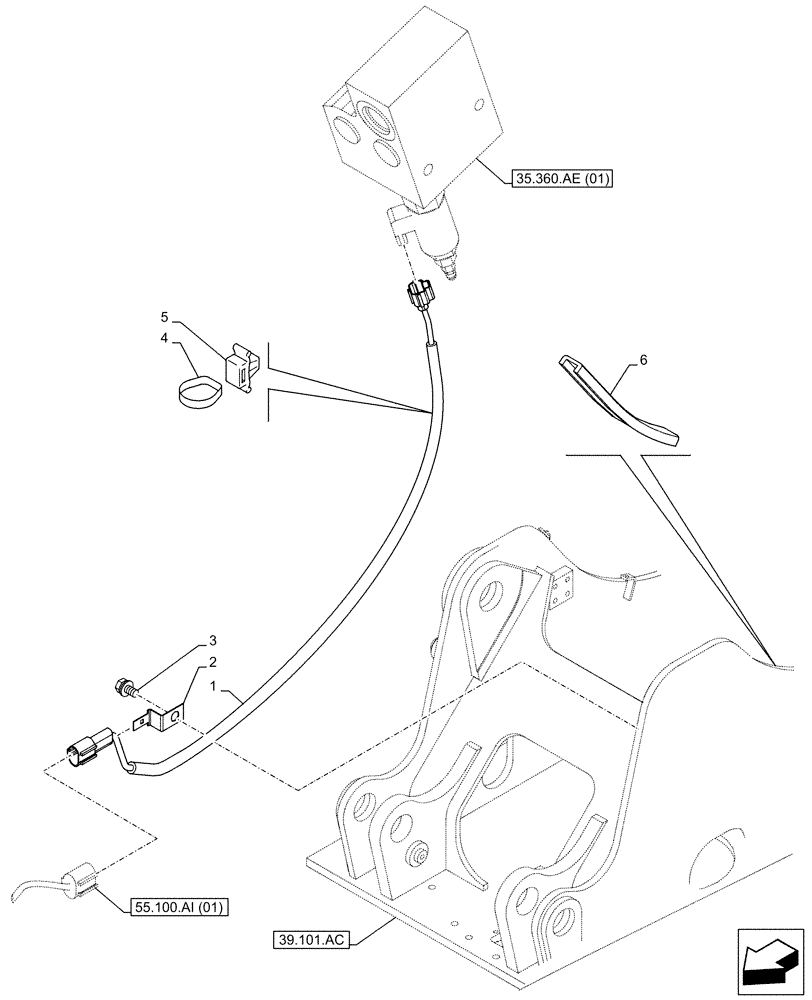

Схема запчастей Case CX160D LC - (55.950.AA) - VAR - 461869 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.100.ai (01)
5
4
1
6
39.101.ac
2
3
35.360.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR25520

WIRE HARNESS

1шт.

2

158962A1

CLIP

1шт.

3

167518A1

BOLT

M8 x 16mm

1шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

KHR10220

MOUNTING CLIP

1шт.

6

162190A1

GROMMET

300mm

1шт.
