Запчасти Case CX160D LC (55.530.AC[01]) - VAR - 461504, 488037 - REAR VIEW CAMERA, COVER (55) - ELECTRICAL SYSTEMS

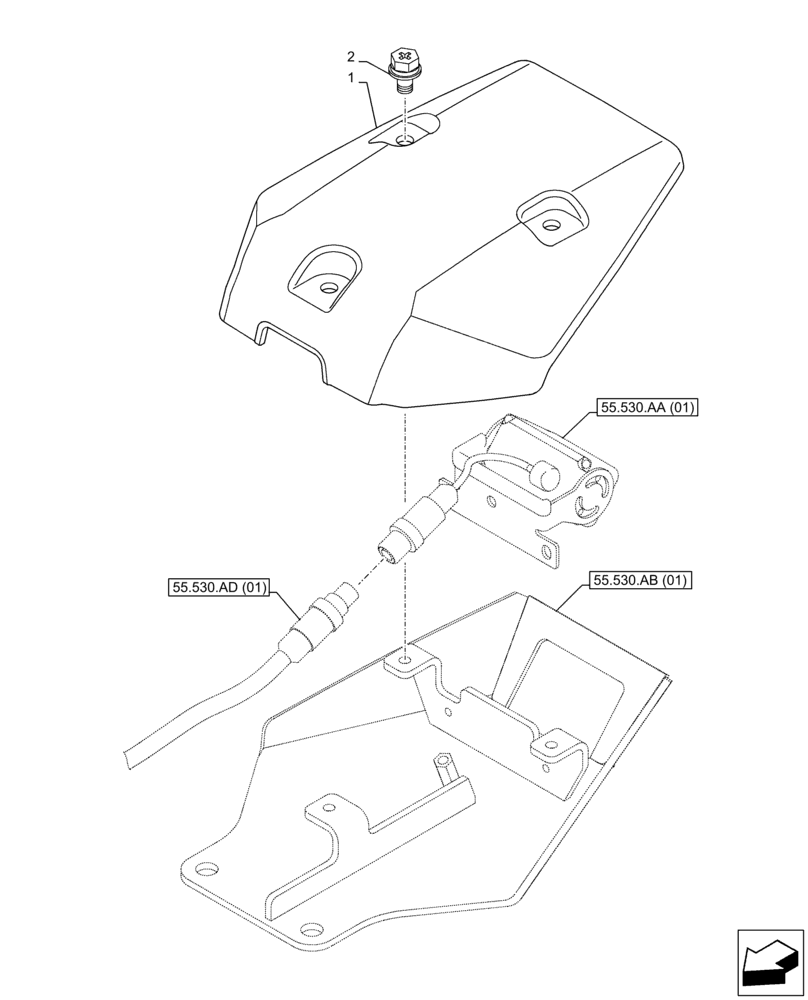

Схема запчастей Case CX160D LC - (55.530.AC[01]) - VAR - 461504, 488037 - REAR VIEW CAMERA, COVER (55) - ELECTRICAL SYSTEMS
1
2
55.530.aa (01)
55.530.ab (01)
55.530.ad (01)

Артикул

Название

Примечание

Количество

1

KHR39560

COVER

1шт.

2

KHN2308

SCREW

M8 x 16mm

3шт.

Выбрано товаров: 2
