(55.518.AP) - WINDSHIELD WASHER , RESERVOIR, HOSE

Запчасти Case CX160D LC (55.518.AP) - WINDSHIELD WASHER , RESERVOIR, HOSE (55) - ELECTRICAL SYSTEMS

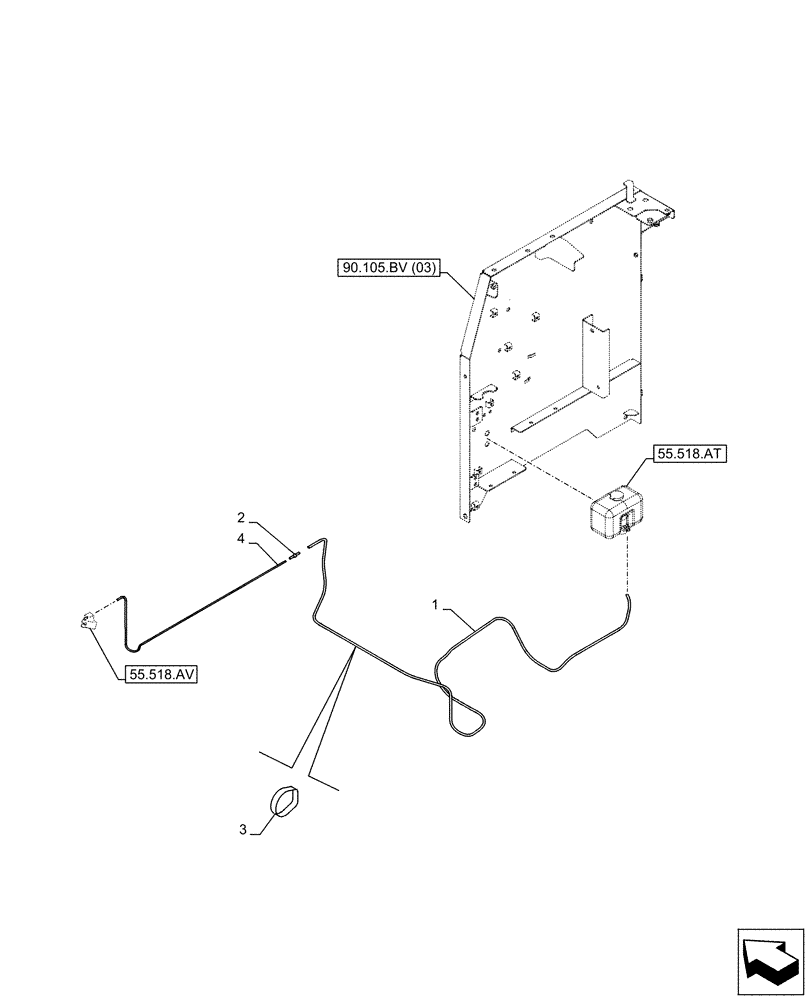

Схема запчастей Case CX160D LC - (55.518.AP) - WINDSHIELD WASHER , RESERVOIR, HOSE (55) - ELECTRICAL SYSTEMS
90.105.bv (03)
3
2
1
55.518.at
55.518.av
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR33430

HOSE

2900mm

1шт.

2

KHN16100

RUBBER JOINT

1шт.

Part is Included in Cab Assembly PN KHN37090 (NA)

1шт.

3

150496A1

MOUNTING CLIP

250mm

9шт.

4

KHN16050

TUBE

1шт.

Part is Included in Cab Assembly PN KHN37090 (NA)

1шт.

Выбрано товаров: 6
