(55.425.AT[03]) - VAR - 461868, 461869 - PRESSURE SENSOR, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (55.425.AT[03]) - VAR - 461868, 461869 - PRESSURE SENSOR, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

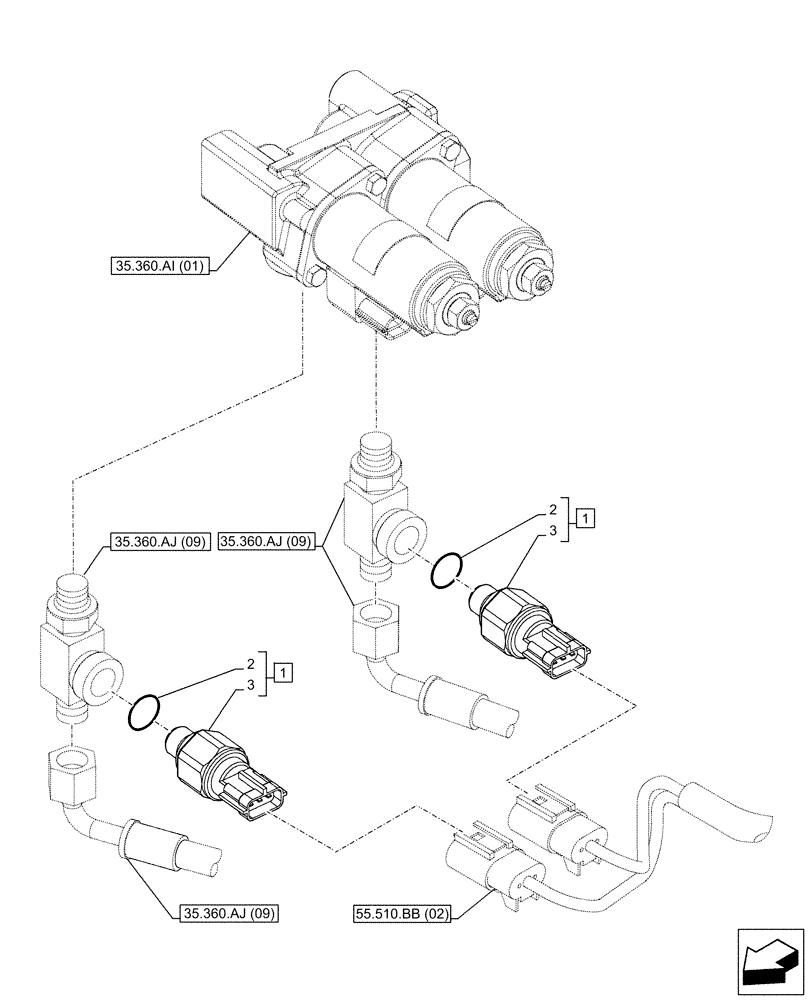

Схема запчастей Case CX160D LC - (55.425.AT[03]) - VAR - 461868, 461869 - PRESSURE SENSOR, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.aj (09)
1
35.360.aj (09)
1
2
35.360.ai (01)
3
2
55.510.bb (02)
35.360.aj (09)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, Pressure, 5MpA, Incl 2, 3

2шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

2шт.

Выбрано товаров: 3
