(55.425.AT[02]) - VAR - 461871 - PRESSURE SENSOR, HAMMER, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (55.425.AT[02]) - VAR - 461871 - PRESSURE SENSOR, HAMMER, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

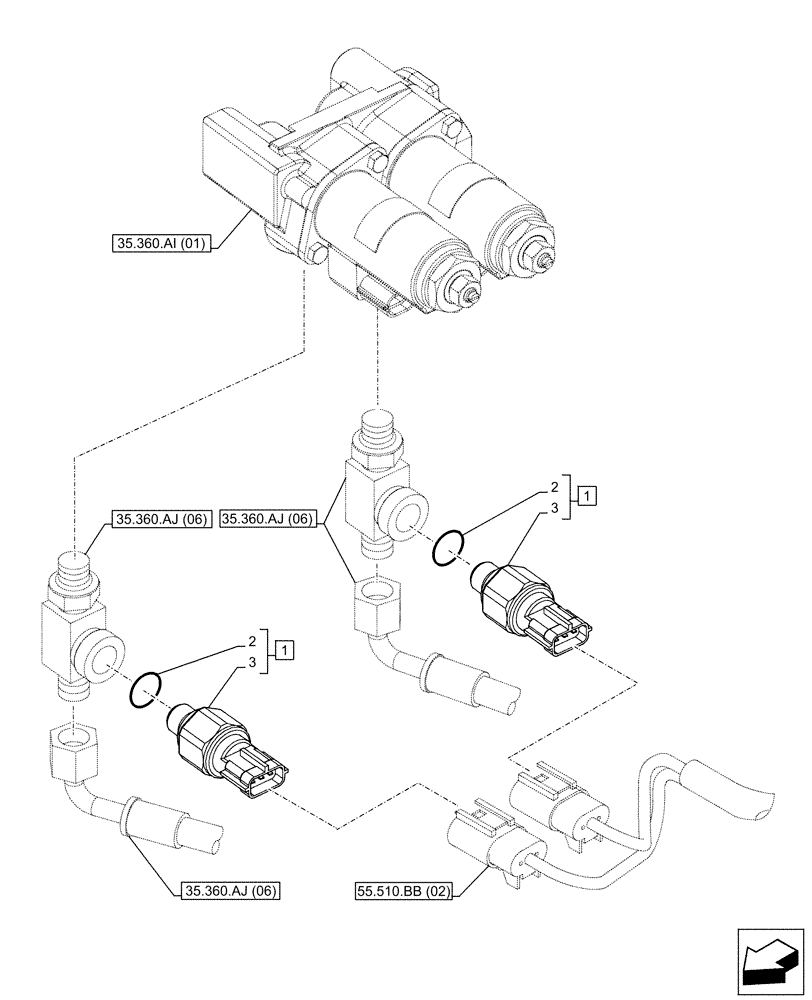

Схема запчастей Case CX160D LC - (55.425.AT[02]) - VAR - 461871 - PRESSURE SENSOR, HAMMER, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.aj (06)
35.360.aj (06)
1
35.360.ai (01)
35.360.aj (06)
1
2
55.510.bb (02)
2
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, 5Mpa, Incl 2, 3

2шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

2шт.
