(55.404.CD[05]) - VAR - 488037, 488038 - REAR VIEW CAMERA, SIDE CAMERA, LIGHT, COMPONENTS

Запчасти Case CX160D LC (55.404.CD[05]) - VAR - 488037, 488038 - REAR VIEW CAMERA, SIDE CAMERA, LIGHT, COMPONENTS (55) - ELECTRICAL SYSTEMS

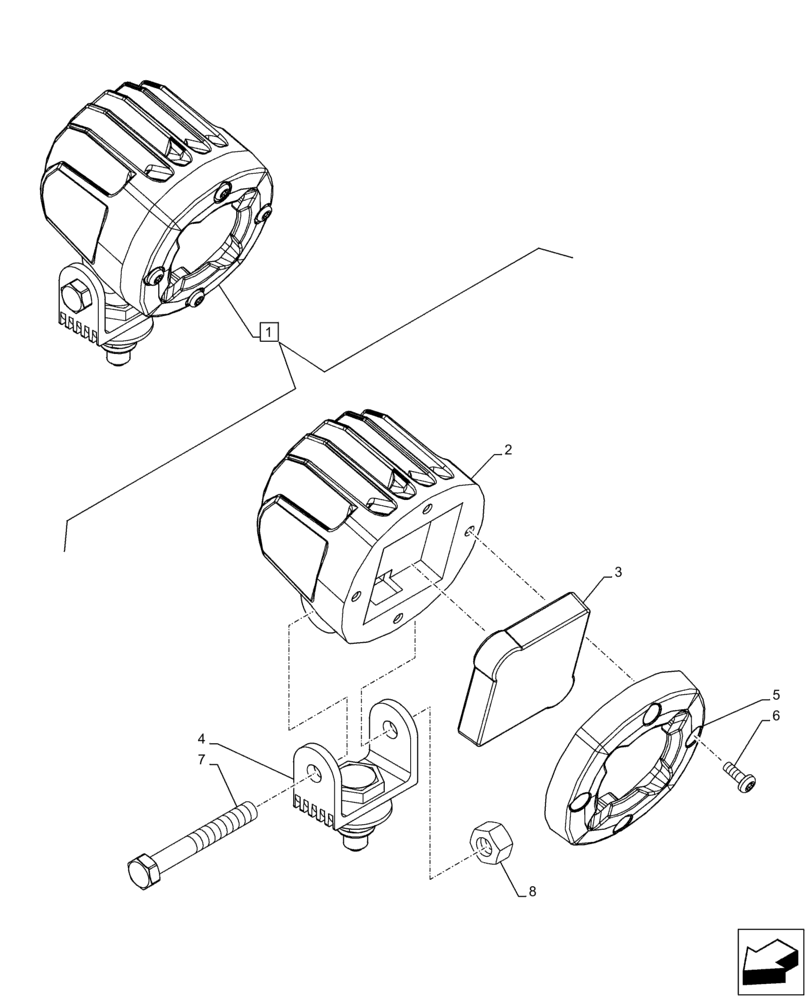

Схема запчастей Case CX160D LC - (55.404.CD[05]) - VAR - 488037, 488038 - REAR VIEW CAMERA, SIDE CAMERA, LIGHT, COMPONENTS (55) - ELECTRICAL SYSTEMS
2
7
5
1
3
4
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR37950

WORK LAMP

ASSY, Led 24V 13W, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Lamp, Incl in 1

1шт.

3

KHR37970

LENS

1шт.

4

KHR37960

BRACKET

1шт.

5

KHR37980

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

7

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.
