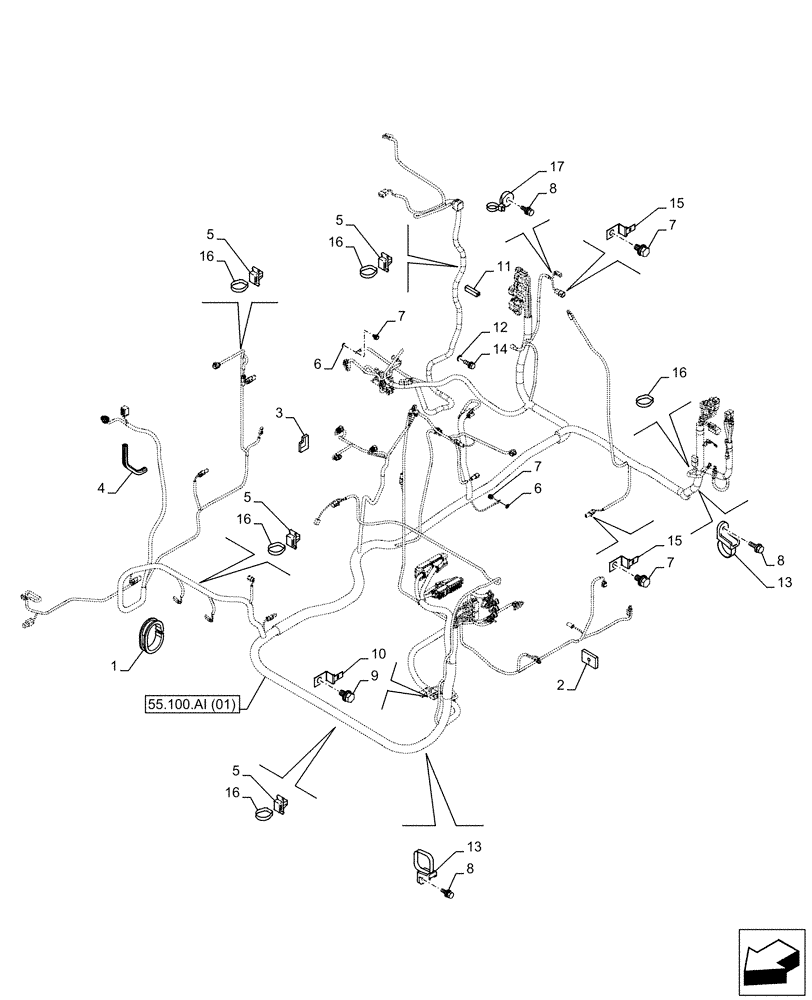

Запчасти Case CX160D LC (55.100.AI[02]) - MAIN, WIRE HARNESS, CABLE CLIP (55) - ELECTRICAL SYSTEMS

1

160414A1

RUBBER BLOCK

25mm x 440mm

2шт.

2

KLR10260

SEAL

1шт.

3

KLR11160

SEAL

1шт.

4

KMJ2839

SEAL PROTECTION

1шт.

5

KHR10220

MOUNTING CLIP

61шт.

6

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

7

167518A1

BOLT

M8 x 16mm

7шт.

8

KHJ1215

BOLT,Spcl

M8 x 25mm

11шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

10

165405A1

CLIP

2шт.

11

HKR0009

SEAL PROTECTION

60mm

1шт.

12

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

13

KHR2581

CLAMP

8шт.

14

KHJ2298

BOLT,Spcl

M10 x 25mm

1шт.

15

158962A1

CLIP

5шт.

16

150496A1

MOUNTING CLIP

250mm

71шт.

17

KHR2584

CLAMP

3шт.
