(55.036.AB[01]) - VAR - 461865, 461868, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (55.036.AB[01]) - VAR - 461865, 461868, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

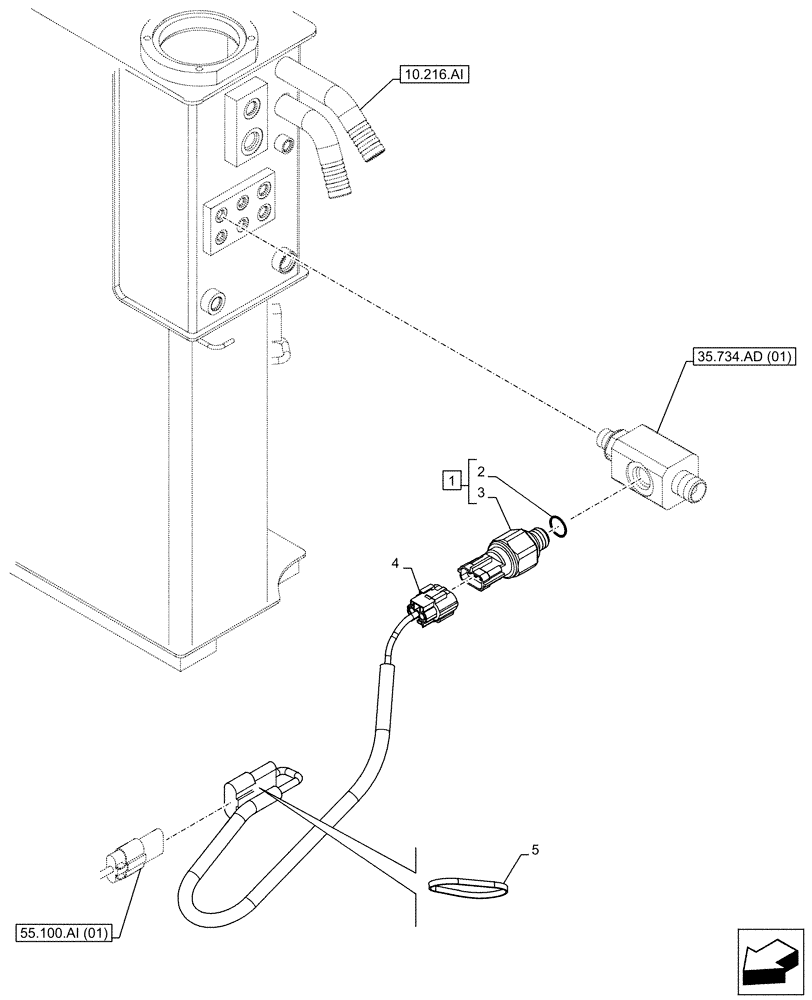

Схема запчастей Case CX160D LC - (55.036.AB[01]) - VAR - 461865, 461868, 461869 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
2
5
35.734.ad (01)
10.216.ai
1
3
4
55.100.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR32870

SENSOR

ASSY, Pressure Sensor, 1Mpa, Incl 2, 3

1шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

150496A1

MOUNTING CLIP

2шт.
