(55.011.AE) - VAR - 481257 - FUEL TRANSFER PUMP

Запчасти Case CX160D LC (55.011.AE) - VAR - 481257 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS

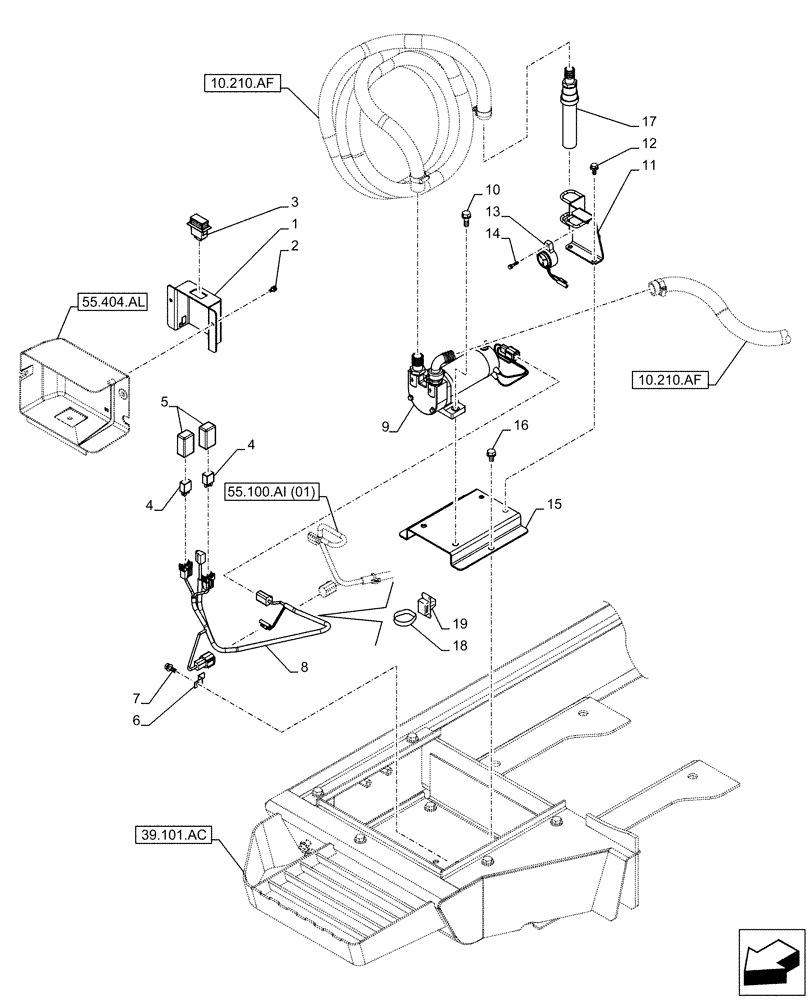

Схема запчастей Case CX160D LC - (55.011.AE) - VAR - 481257 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS
4
19
5
14
2
1
10
3
8
15
4
13
18
10.210.af
9
55.404.al
17
7
39.101.ac
55.100.ai (01)
16
6
10.210.af
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR15080

COVER

1шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

3

KHR12900

SWITCH

Feed pump switch

1шт.

4

KHR3802

RELAY

24V

2шт.

5

159904A1

COVER

2шт.

6

KHR37410

CLIP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KHR43610

WIRE HARNESS

1шт.

9

KHR12840

FUEL PUMP

Fuel Feed (50L/Min)

1шт.

10

166347A1

BOLT,Sems, M10 x 30mm

2шт.

11

KHR43540

BRACKET

1шт.

12

166350A1

BOLT

M8 x 20mm

2шт.

13

KHR4024

ALARM

1шт.

14

KHR1832

SPECIAL BOLT

M5 x 25mm

1шт.

15

KHR43600

BRACKET

1шт.

16

166351A1

BOLT,Sems, M10 x 20mm

2шт.

17

KHR12430

VALVE SECTION

????? ??? (50L/MIN??)

1шт.

18

150496A1

MOUNTING CLIP

250mm

1шт.

19

KHR10220

MOUNTING CLIP

1шт.
