(35.738.AE[01]) - BUCKET CYLINDER, LINES

Запчасти Case CX160D LC (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

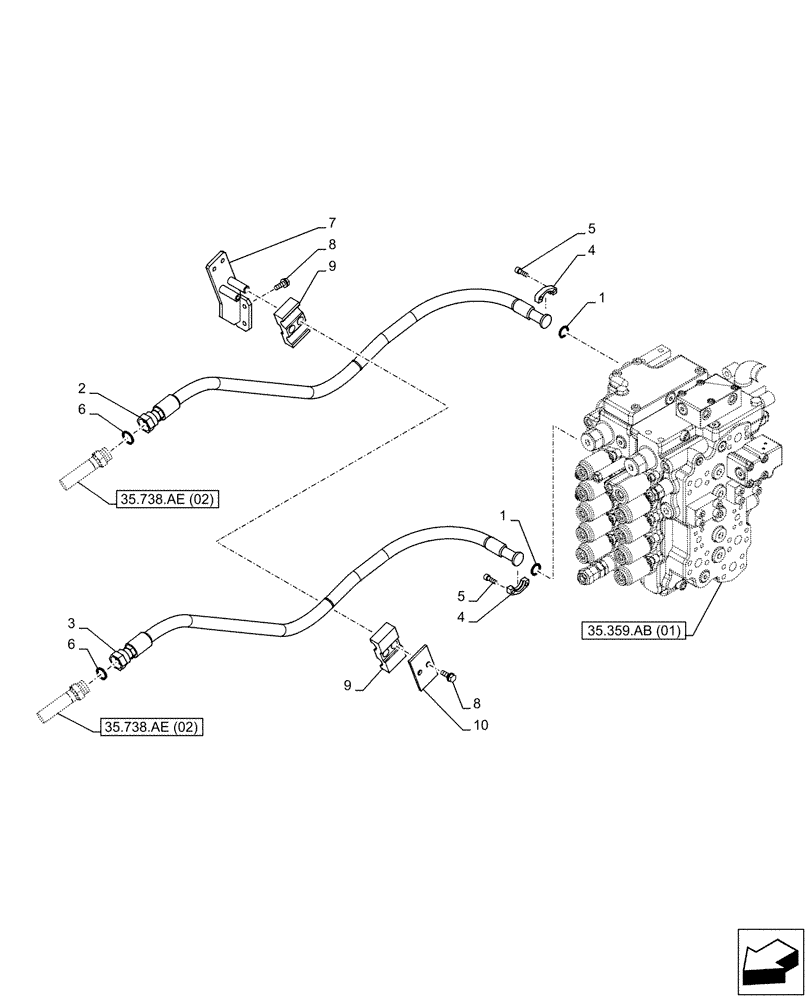

Схема запчастей Case CX160D LC - (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
8
5
3
6
6
9
8
10
35.738.ae (02)
5
1
4
35.738.ae (02)
2
1
4
35.359.ab (01)
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

161096A1

O-RING

2шт.

2

KLJ14341

HYDRAULIC HOSE

15mm ID x 1560mm

1шт.

3

KLJ10700

HOSE ASSY.,15.90 mm ID x 1380.00 mm

15mm ID x 1380mm

1шт.

4

161080A1

FLANGE

4шт.

5

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

7

KLJ13780

BRACKET

1шт.

8

166347A1

BOLT,Sems, M10 x 30mm

4шт.

9

KRH10200

COLLAR

2шт.

10

KRH10210

PLATE

1шт.

Выбрано товаров: 10
