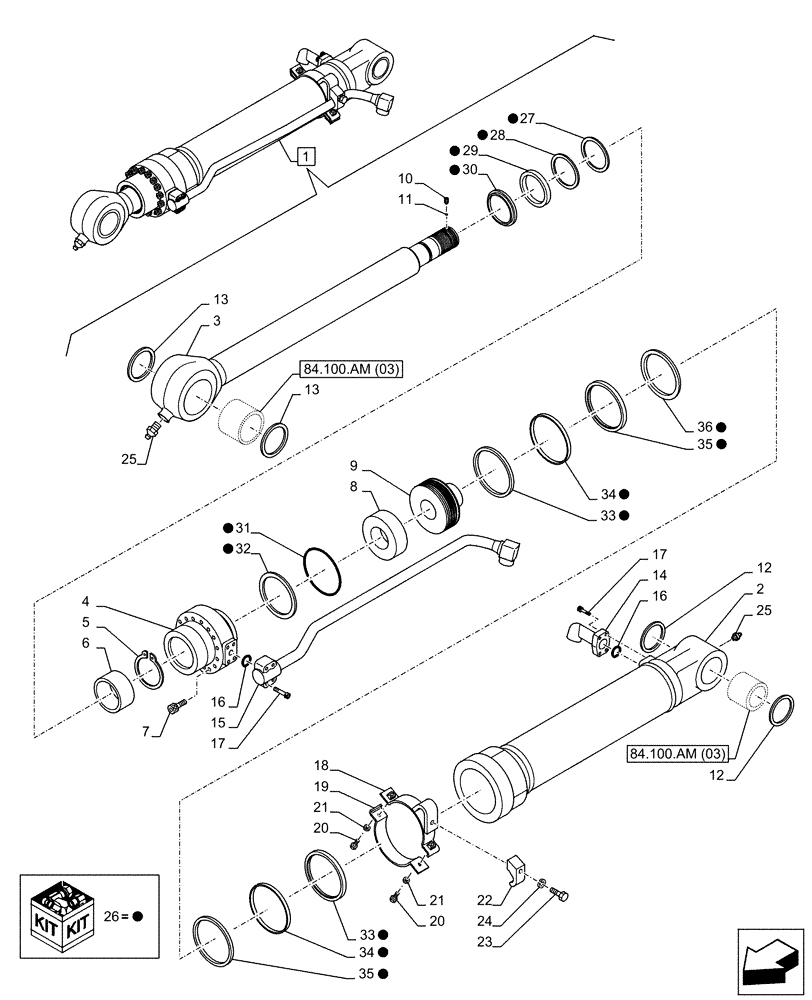

Запчасти Case CX160D LC (35.738.AA[04]) - VAR - 781176 - BUCKET CYLINDER, COMPONENTS (ARM L=2.6M) (35) - HYDRAULIC SYSTEMS

1

KLV11081

BUCKET CYLINDER

ASSY, Incl 2 - 36

1шт.

See also Figure 84.100.AM (03)

1шт.

1

KLV11081R

REMAN-HYD CYLINDER

Reman Cylinder

1шт.

1

KLV11081C

CORE-HYD CYLINDER

Return Number

1шт.

2

LZ008220

HYD CYL SLEEVE

1шт.

3

LZ008230

PISTON ROD

1шт.

4

NSS

NOT SOLD SEPARAT

Head, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

7

108R014Z065N

BOLT

12шт.

8

LE015070

SEALING RING

1шт.

9

LJ014880

PISTON

1шт.

10

156222A1

SCREW

1шт.

11

155976A1

BALL

1шт.

12

164445A1

RING

2шт.

13

160482A1

WIPER SEAL

2шт.

14

155516A1

TUBE

1шт.

15

LR015490

TUBE

1шт.

16

154528A1

O-RING

2шт.

17

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

18

LD00070

CLAMP BRACKET

1шт.

19

LZU0095

CLAMP BRACKET

1шт.

20

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

2шт.

21

156227A1

WASHER

2шт.

22

155717A1

COLLAR

1шт.

23

628-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd

1шт.

24

892-10012

LOCK WASHER,M12

1шт.

25

153630A1

LUBE NIPPLE

2шт.

26

LZ010810

SEAL KIT

1шт.

27

LE015050

RING

1шт.

28

LE015060

O-RING

1шт.

29

160808A1

BACK-UP RING

1шт.

30

LE019420

RING,75mm ID x 89mm OD x 13mm Thk

1шт.

31

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

32

161880A1

BACK-UP RING

1шт.

33

155330A1

SEALING RING

1шт.

34

161881A1

BACK-UP RING

2шт.

35

LE015080

SCRAPER RING

2шт.

36

161883A1

BACK-UP RING

2шт.
