(35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX160D LC (35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

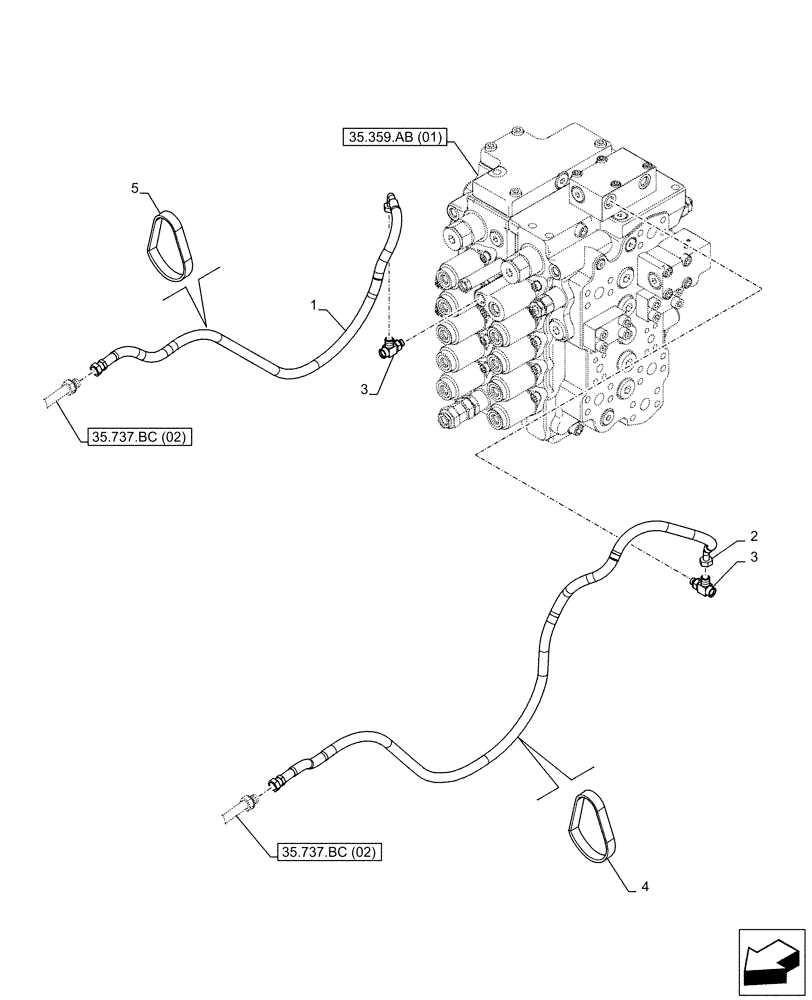

Схема запчастей Case CX160D LC - (35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
5
1
2
35.737.bc (02)
4
3
3
35.737.bc (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ26860

HOSE ASSY.

9mm ID x 1250mm

1шт.

2

KHJ34820

HYDRAULIC HOSE

9mm ID x 1700mm

1шт.

3

KHJ11560

TEE

G1/4" x G3/8" x G1/4"

2шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

150071A1

MOUNTING CLIP

380mm

1шт.

Выбрано товаров: 5
